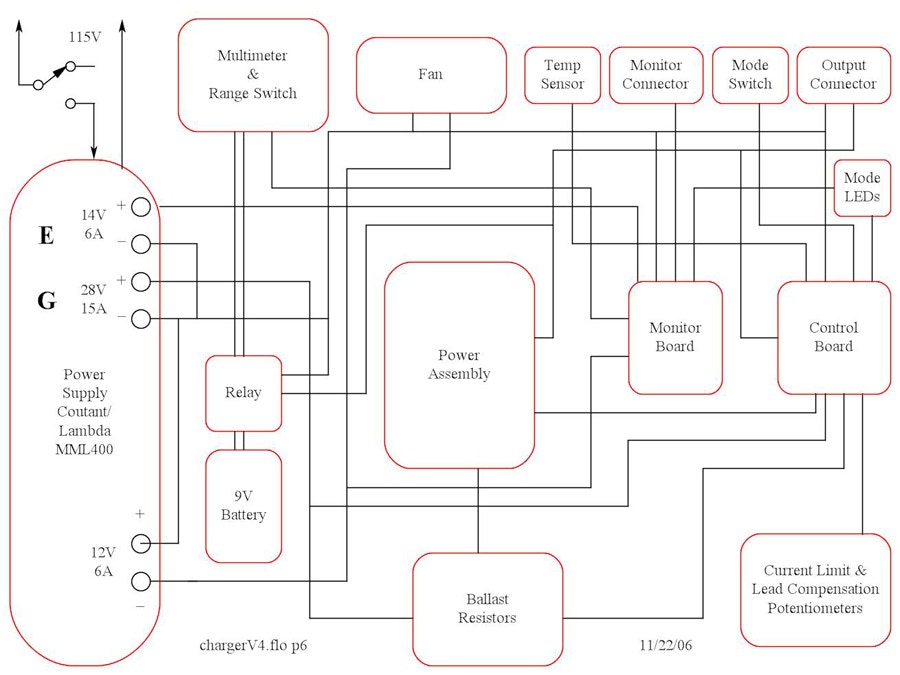

12V dual-mode 12A Power Supply System Diagram

This is a large and heavy device. The switch on the left switches between a constant 12V and a voltage which varies between 12.6 and 14V for use when connected to a 12V lead-aid battery.

The other switch allows the meter to measure either voltage or current. It can also show the temperature of the heat sink.
