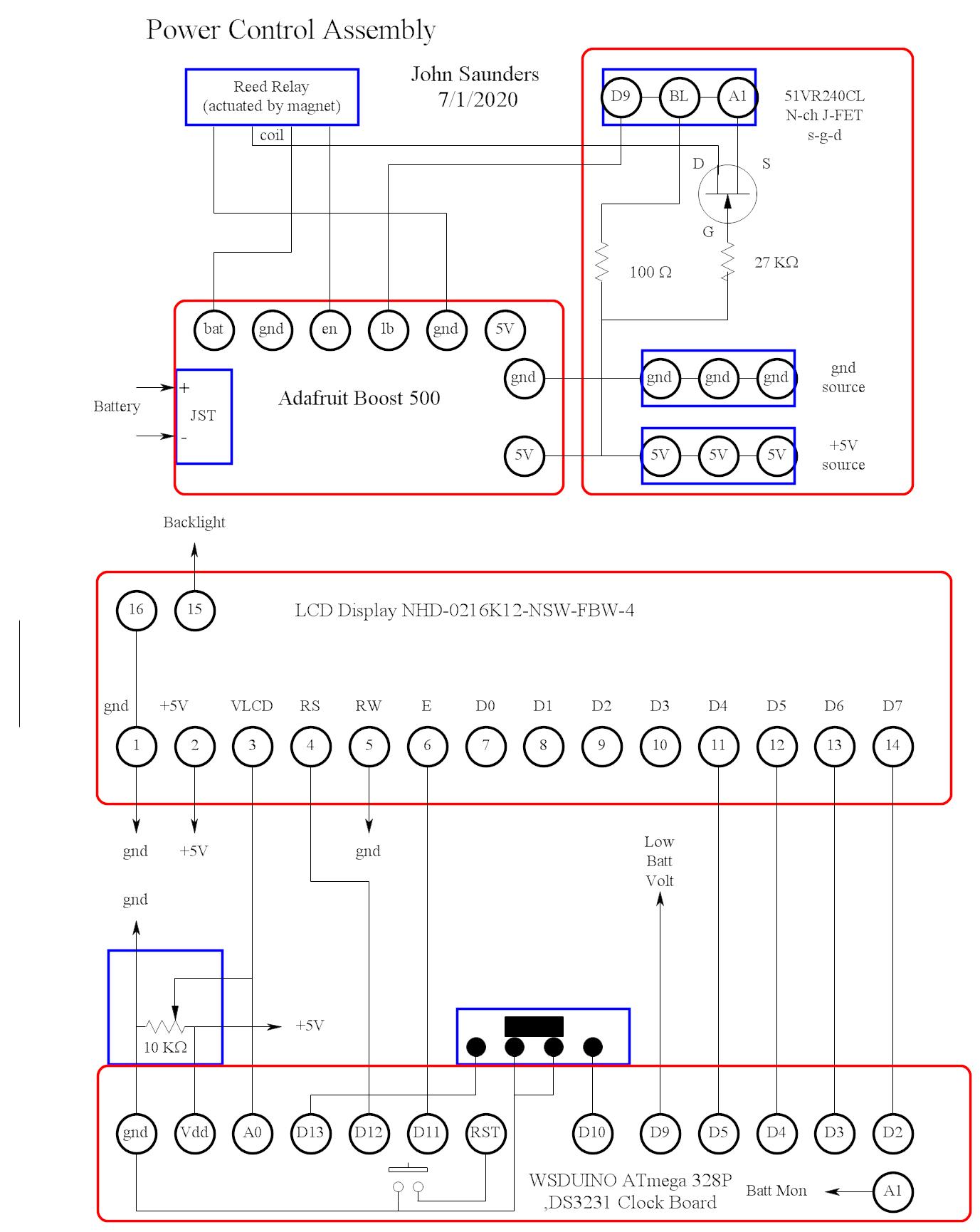

These is the circuit diagram:

System Diagram
The J-FET circuit prevents the battery measurement circuit from draining the battery when the processor is off.
The 100 ohm resistot is for the LED backlight (BL).Block Diagram
