7-Position Controller

This design is predicated on getting a minature toggle switch with double-pole momentary-off-momentary action, not a popular option. The device to be controlled is selected by a rotrary switch, and the toggle switch initiates transmission of ON or OFF codes for up and down. It is quicker than the pushbutton transmitters since no wait for multiple presses is needed,

It uses an analog approach for determining the rotary switch position which depends on the close matching typical of SIP resistor packs.

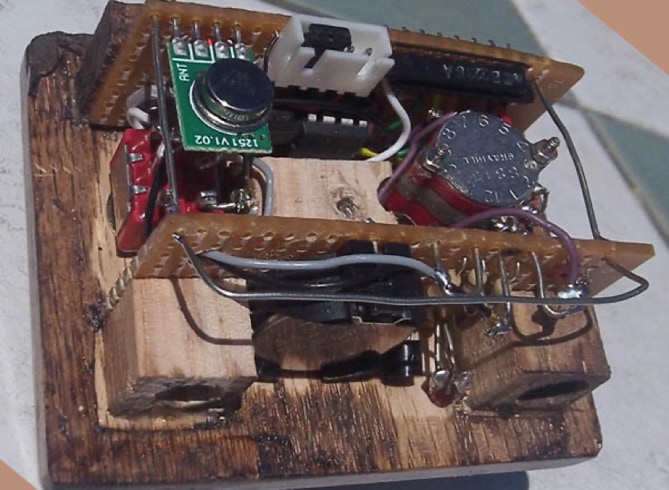

This is the inside. The design is very compact since the resistor divider consists of tiny SIP modules, and the rotary switch needs only one bank. The switch is a military type thanks to buying a pallet-load of spare aircraft communication panels at a Navy auction for $75.

This controller is still in daily  use because it is small.

Program

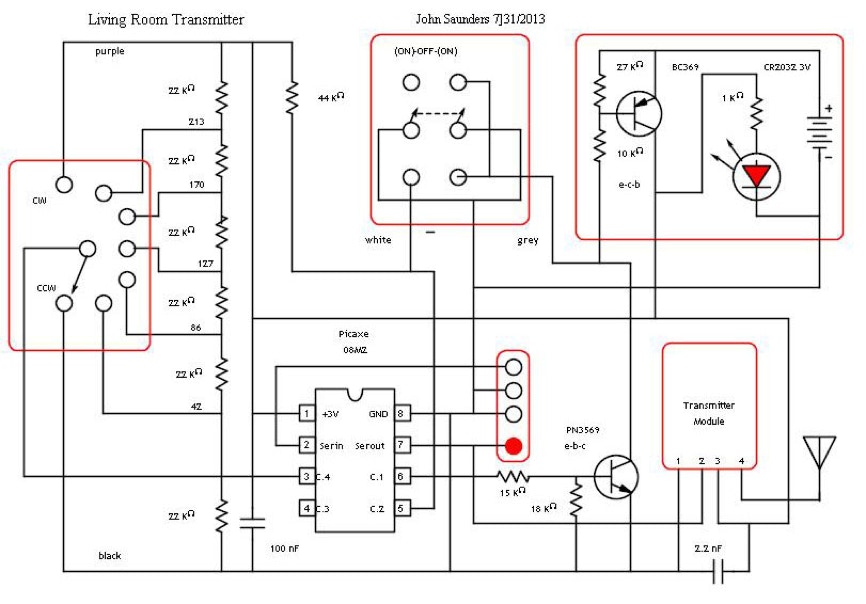

Circuit Diagram

.The circuit uses a Picaxe 08M2 which has 3 functions:

1. Get switch position.

2. Maintain the power until the message has been transmitted.

3. Construct the message and transmit it,

The 8 resistors  on the left encode the switch position to an analog voltage. Two 4-reristor SIP packs a re soldered together offset by one.

Thy are closely match by the manufacturing process.

One side of the toggle switch encodes its position, to form 14 codes The other turns on the MOSFET which completes the power circuit.


C1  keeps the power on.

When not being programmed, the top two hider pins are shorted with a jumper block.

#rem

Rotary 7-pos toggle.bas This is for the little wooden box with the 7-position rotary switch

and 2-way momentary toggle. It is labelled for and controls the living room lights:

Pos     On Off        Codes transmitted

1     I   C (Hanging) The macrame lamp hanging from the ceiling, .

2     R   G (Ceiling) ceiling Light

3     7   6 (String) The LED string hanging from the gazebo

4     m   J (Icycle) The LED string hanging from the eves

5     d   9 (Eggs) The leads from the "Octupus" 60 MA series from the current regulator

6     Y   W (Flashing) The bases with individual transformers

7     M   g (Missions) The model missions.

John Saunders 10/31/2016

#endrem


#picaxe 08M2


'Inputs:

symbol TX_Data_Port     = C.0        'Idle low serial transmission at 2400 baud

symbol On_Off_Port      = pinC.2    'Low for ON (up)

symbol Rot_Sw_Port      = C.4        'An analog value giving the position of the rotary switch


'Output

symbol Hold_Port        = C.1        'A high maintains power to the circuits.


'Constants

symbol Start_Count      = 22        'Half way to the count for the Floor position

symbol Step_Count       = 42        'Count between switch positions

symbol TX_Preamble      = 20        'A long pulse before the serial transmission to trigger an interrupt

symbol TX_Ser_Setup     = 10        'Gives time to execute the serial in command in the interrupt procedure


'EEPROM

'DATA 0,("I","C","b","f","K","8","Y","W","E","F","P","W","M","W")

'DATA  0,("I","C","R","G","K","8","Y","W","E","F","P","W","M","W")

DATA  0,("I","C","R","G","7","6","m","J","d","9","Y","W","M","g")

'Variables

symbol Sw_Pos           = b1        '0-13, even = on, order = Hanging,Floor,Icicle,Top,Shelf,Circle,Bullseye

symbol Rot_Sw_Val        = b2        'Analog measurement

symbol Threshold        = b3        'The value to compare the analog to

symbol Char             = b4

symbol Mom_Sw_Pos       = b5        '0 for ON


init:

HIGH Hold_Port

SETFREQ m4


main:

LET Mom_Sw_Pos = On_Off_Port

READADC Rot_Sw_Port,Rot_Sw_Val

FOR Sw_Pos = 0 TO 5

    LET Threshold = Sw_Pos * Step_Count + Start_Count

    IF Rot_Sw_Val <  Threshold THEN

        EXIT

    ENDIF

NEXT Sw_Pos

IF Rot_Sw_Val >  Threshold THEN

    LET Sw_Pos = 6

ENDIF

LET Sw_Pos = 2*Sw_Pos + Mom_Sw_Pos

READ Sw_Pos, Char

HIGH TX_Data_Port            'This pulse unlocks the receiver

PAUSE TX_Preamble

LOW TX_Data_Port

PAUSE TX_Ser_Setup

SEROUT TX_Data_Port,N2400_4,("14L1776",Char,13,10)        'The CR,LF is for debugging

LOW Hold_Port

PAUSE 5000

GOTO main
