This controller was made to control the 4-Outlet Receiver, but has been re-programmed. It uses a single button and a 8-position rotary switch.
This results iin 8 possible control codes. All are On-Off.
It consumes no battery current until the button is pressed, then it transmits the selected code and shuts down. The battery has not needed ever to be changed. It is retired

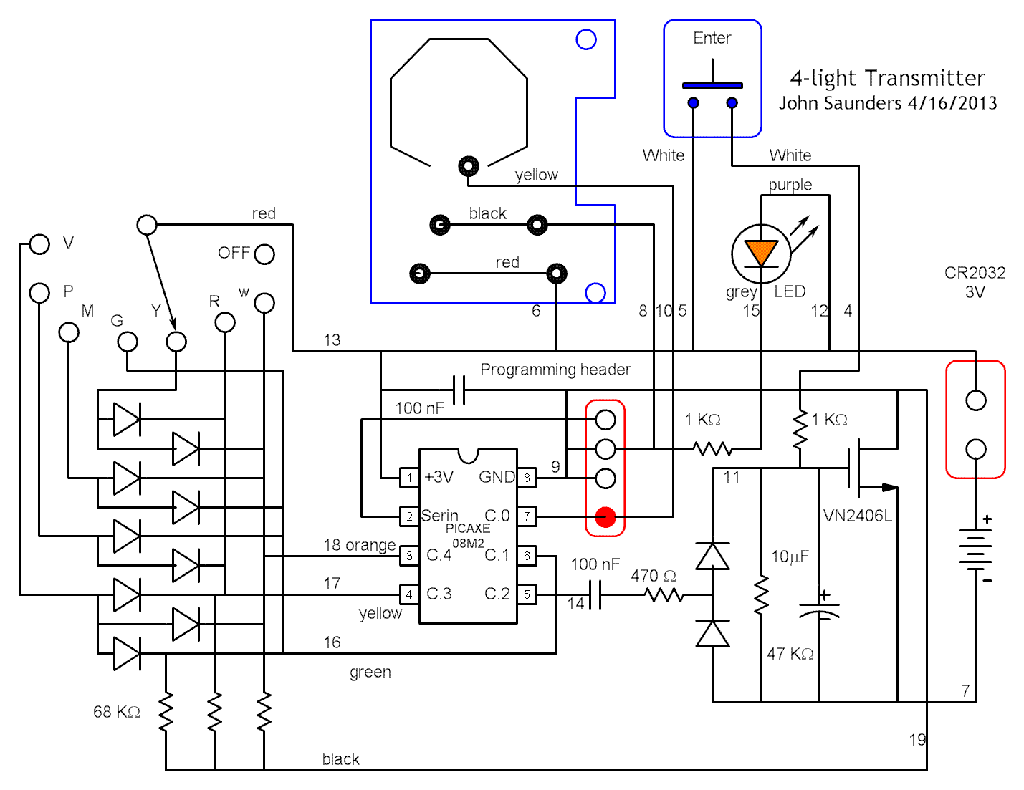

Circuit Diagram
The circuit uses a Picaxe 08M2 which has 3 functions:
1. Get switch position.
2. Maintain the power until the message has been transmitted.
3. Construct the message and transmit it,
The 9 diodes on the left encode the switch position to 3-bit BCD.
The push-button turns on the MOSFET which completes the power circuit.
C2 provides an AC voltage using PWM which is rectified to keep the power on.
When not being programmed, the top two hider pins are shorted with a jumper block.
The transmitter was recycled.
Program Declarations
#rem 4-Light-transmitter2024.bas
New version to control the Cube Alarm
John Saunders 10/9/2024
#endrem
#PICAXE 08M2
'Ports
symbol TX_Data_Port = C.0 'Idle low serial transmission at 2400 baud
symbol Sw_2 = pinC.1 'Switch BCD bit 2
symbol Sw_1 = pinC.3 'Switch BCD bit 1
symbol Sw_0 = pinC.4 'Switch BCD bit 1
symbol PWM_Port = C.2 'Keeps the power flowing, charges the gate with a 10 KHz square wave
'Variables
symbol swPos = b1 'The value of the code for switch position
symbol index = b2 'For loop counter
symbol dataAddr = b3 'Addree of string to be transmitted
symbol char = b4
symbol charPos = b5
'Constants
symbol TX_Interval = 500 'Time between transmissions
symbol TX_Times = 1 'The number of transmissions before shutoff
symbol TX_Preamble = 20 'A long pulse before the serial transmission to trigger an interrupt
symbol TX_Ser_Setup = 10 'Gives time to execute the serial in command in the interrupt procedure
DATA 0,(20,22,24,26,28,30,32,38)
DATA 20,("e",0) 'Cube Blue LED
DATA 22,("D",0) 'Cube green LED
DATA 24,("i",0) 'Pole Lamp ON
DATA 26,("R",0) 'Ceiling Lamp ON
DATA 28,("I",0) 'Hanging Lamp ON
DATA 30,("K",0) 'Pineapple Lamo ON
DATA 32,("S","m","7","d","Y",0) 'Background Lights ON
DATA 38,("f","C","6","J","8","9","W","G","g","F","U",0) 'All OFF
Program Init and Main
Init:
SETFREQ m4
PWMOUT PWM_Port,100,200 'Time to start up = 30 ms, freq = 10 KHz
LET swPos = 2*Sw_1 + Sw_0
LET swPos = 4*Sw_2 +swPos
main:
FOR Index = 1 TO TX_Times
LET dataAddr = swPos
READ dataAddr,charPos 'First output character
DO
READ charPos,char
IF char > 0 THEN
HIGH TX_Data_Port 'This pulse unlocks the receiver
PAUSE TX_Preamble
LOW TX_Data_Port
PAUSE TX_Ser_Setup
SEROUT TX_Data_Port,N2400_4,("14L1776",char,13,10) 'The CR,LF is for debugging
ENDIF
PAUSE TX_Interval
LET charPos = charPos + 1
LOOP WHILE char > 0
NEXT
LOW TX_Data_Port
PWMOUT PWM_Port,OFF
PAUSE 300
END
