This design was made big enough to have good labeling for all twelve positions of the rotary device selector switch.
This design is predicated on getting a minjature toggle switch with double-pole momentary-off-momentary action, not a popular option. The device to be controlled is selected by a rotary switch, and the toggle switch initiates transmission of ON or OFF codes for up and down as well as display mode commands. A slide switch doubles he number of codes.
It is quicker than the pushbutton transmitters since no wait for multiple presses is needed,
It uses an analog approach for determining the rotary switch position which depends on the close matching typical of SIP resistor packs.

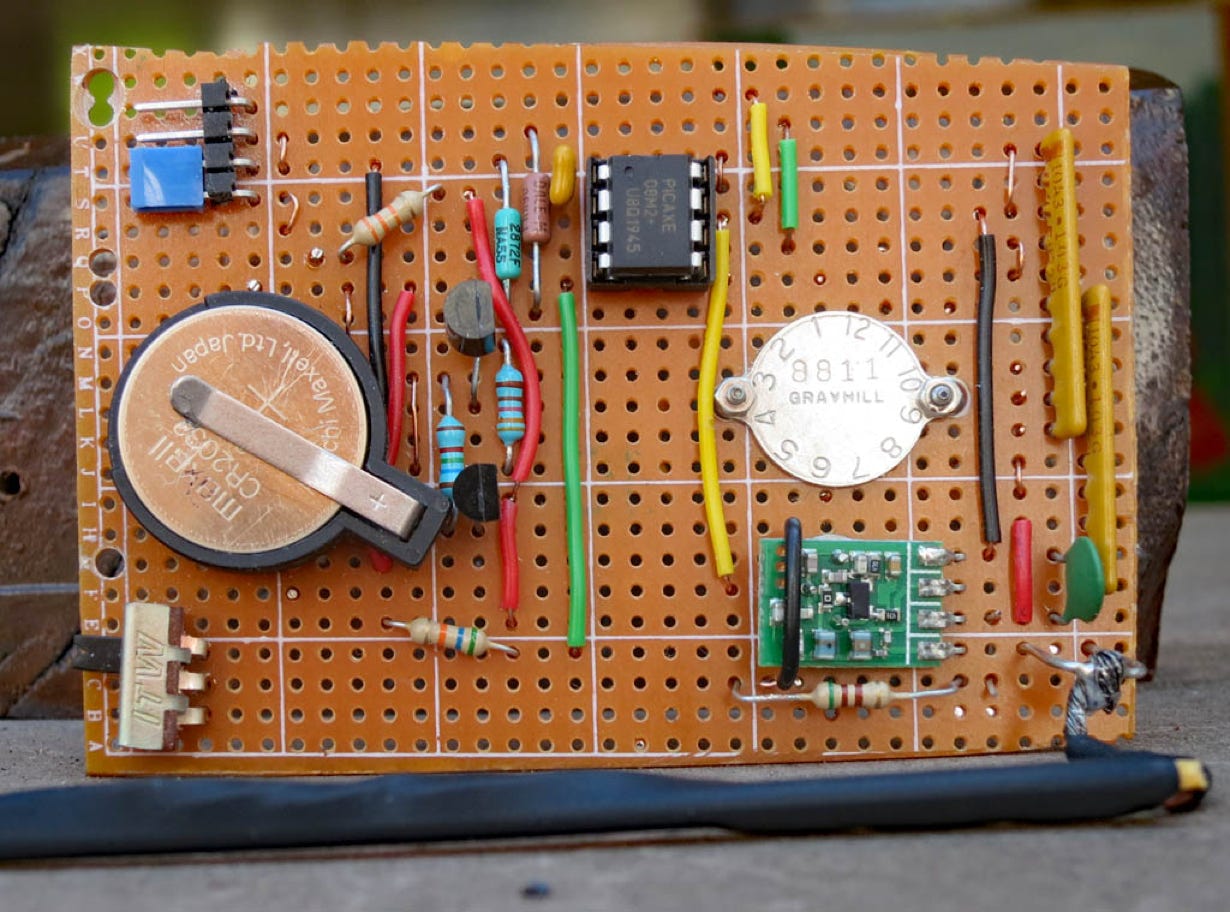

This is the inside. The design is not very compact in the top but is deep enough for the rotary switch. The transmitter is built into a high-quality acrylic box. The side pulls out to access the slide switch. It latches magnetically.
The rotary switch pokes through a hole in the circuit board.
This controller is retired.

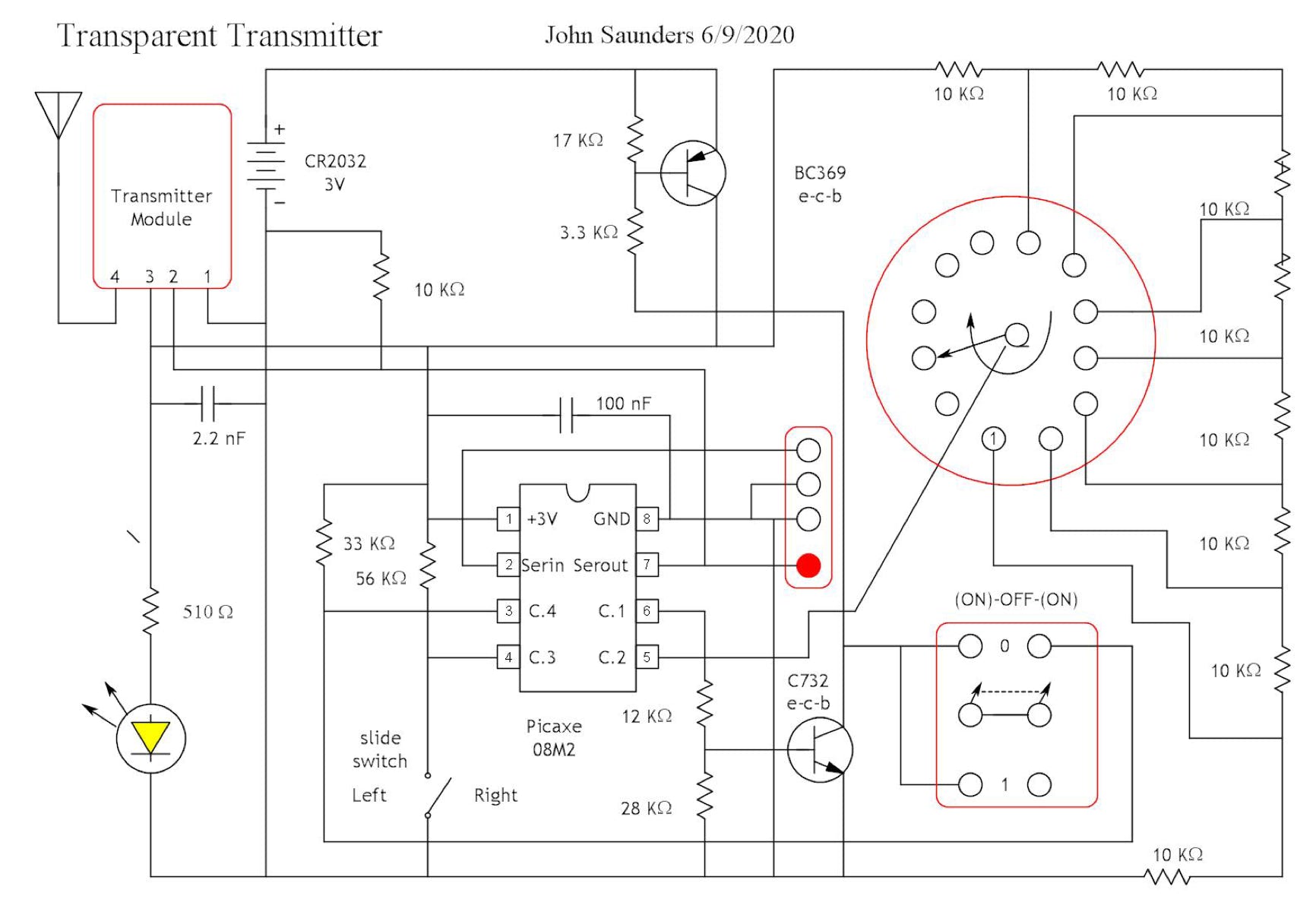

The 8 resistors on the right encode the switch position to an analog voltage. Two 5-resistorSIP packs are used.
They are closely match by the manufacturing process.
One side of the toggle switch encodes its position, plus there is a slide switch to form 28 codes.
The other turns on the MOSFET which completes the power circuit.
C1 keeps the power on.
When not being programmed, the top two hider pins are shorted with a jumper block.
.The circuit uses a Picaxe 08M2 which has 3 functions:
1. Get switch position.
2. Maintain the power until the message has been transmitted.
3. Construct the message and transmit it,
#rem
Transparent.bas An acrylic box.
The 7-position rotary switch is connected to taps on an 8-resistor divider resistor potentiometer.
The voltage is measured and combined with the toggle position and a slide switch to provide 28 indices.
These point to command codes. However certain commands have a 2-character code, the first being O.
These have 128 added to them as a marker.
For the names associated with the key and display codes see Selector.xls.
John Saunders 6/10/2020. 1/19/2021 substitute clear outside outlet for girl fountain
#endrem
#picaxe 08M2
rem Inputs
symbol TX_Data_Port =C.0 'Idle low serial transmission at 2400 baud
symbol Selector_Port = C.2
symbol Toggle_Port = PinC.4
symbol Slide_Port = PinC.3
rem Outputs
symbol Hold_Port = C.1
rem Constants
symbol TX_Preamble = 20 'A long pulse before the serial transmission to trigger an interrupt
symbol TX_Ser_Setup = 10 'Gives time to execute the serial in command in the interrupt procedure
symbol Start_Count = 16
symbol Step_Count = 32
rem Variables
symbol ADC_Val = b1
symbol Key_Addr = b2
symbol Threshold = b3
symbol Key_Code = b4
symbol Display_Code = b5
symbol Slide_Val = b6
symbol Toggle_val = b7
rem Key Code list
rem 0 1 2 3 4 5 6 7 8 9 10 11 12 13
DATA 0, (193,194, 195, 196 ,197,198,"b","f", "d", "9" ,"P","l","M","g")
rem 14 15 16 17 18 19 20 21 22 23 24 25 26 27
DATA 14, ( "3" , "2" ,"1","0","7","6","5","4","R","G","m","J","I","C")
rem DATA 14,( "3" , "2" ,"1","0","7","6","5","4","R","G","J","T","I","C")
main:
HIGH Hold_Port
setfreq m4
LOW Tx_Data_Port
PAUSE 50
LET Toggle_Val = Toggle_Port
LET Slide_Val = 14 * Slide_Port
READADC Selector_Port,ADC_Val
LET Threshold = Start_Count
LET Key_Addr = 14
DO WHILE Threshold < ADC_Val
LET Threshold = Threshold + Step_Count
LET Key_Addr = Key_Addr - 2
LOOP
LET Key_Addr = Key_Addr + Slide_Val + Toggle_Val
READ Key_Addr,Key_Code
IF Key_Code > 128 THEN 'This is a Display Code less 128
LET Display_Code = Key_Code -128
LET Key_Code = "O"
ENDIF
HIGH TX_Data_Port 'This pulse unlocks the receiver
PAUSE TX_Preamble
LOW TX_Data_Port
PAUSE TX_Ser_Setup
IF Key_Code = "O" THEN
SEROUT TX_Data_Port,N2400_4,("14L1776O,",Display_Code)
ELSE
SEROUT TX_Data_Port,N2400_4,("14L1776",Key_Code)
ENDIF
SEROUT TX_Data_Port,N2400_4,(13,10) 'The CR,LF is for recording
PAUSE 50
LOW Hold_Port
END
