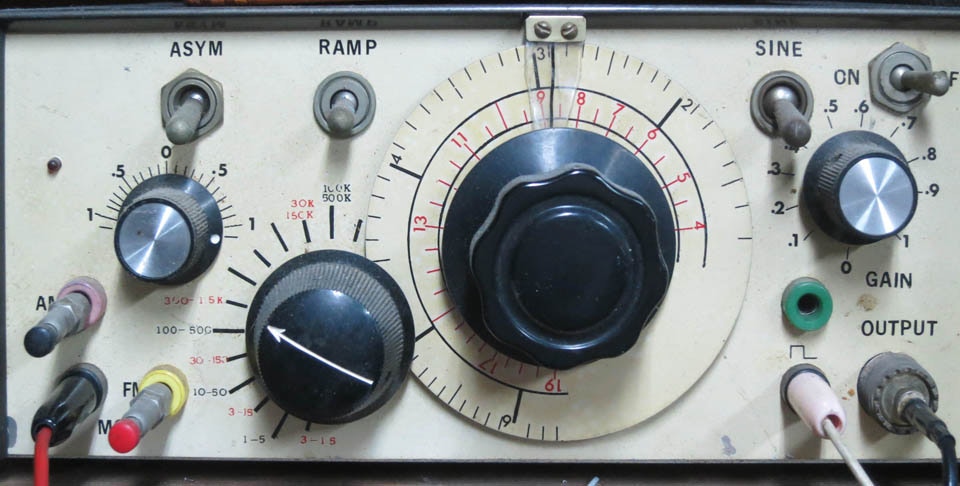

A useful signal generator

This is easy to use and provides signals over a very wide range of frequencies. The signal can be frequency-modulated.

There are two outputs. The main output has a gain control and a variety of waveforms. Its output can also be amplitude-modulated. It’s not a very high voltage and the sine-wave is approximate.

The square wave output is capable of driving logic ICs.
