Line Monitor

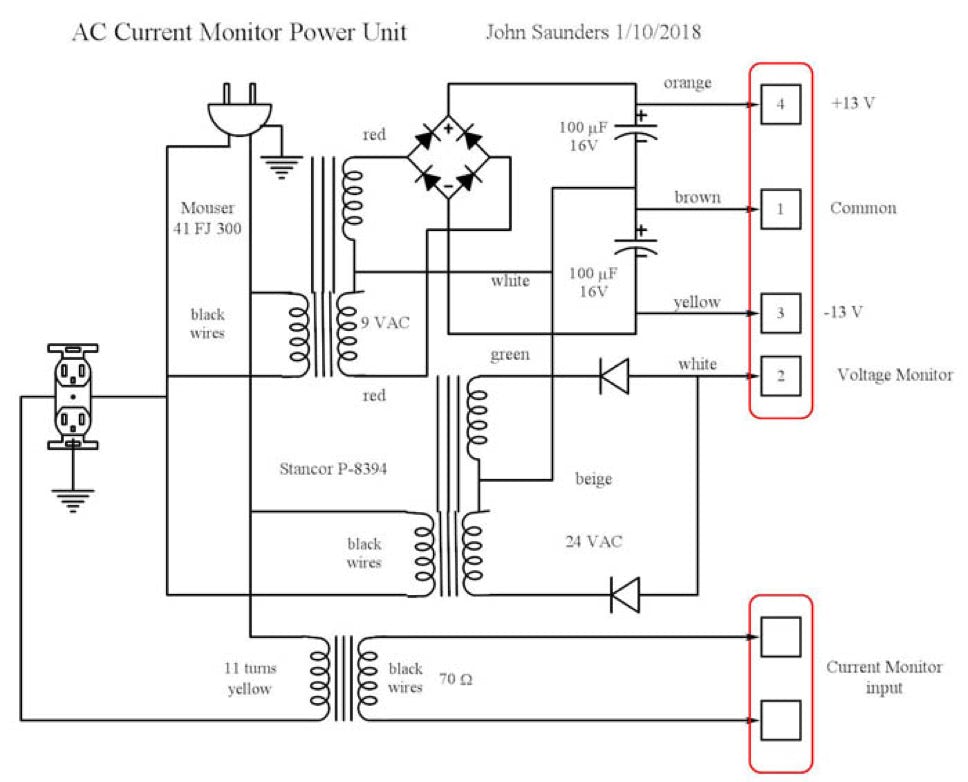

This has a 3-pin line input on a cord and a duplex socket for the item to be tested. This has a limit of 5 amperes.

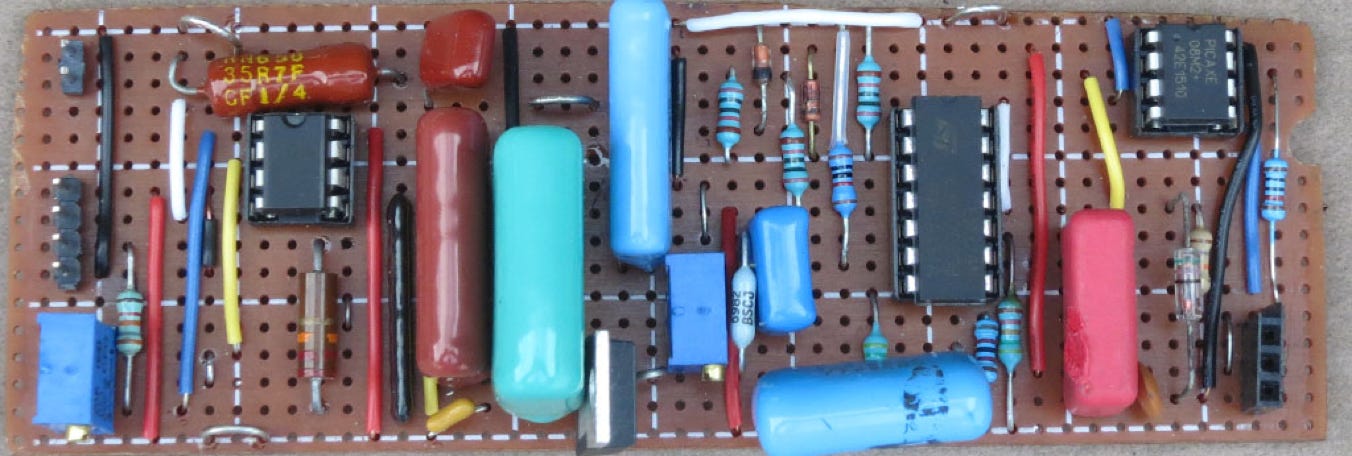

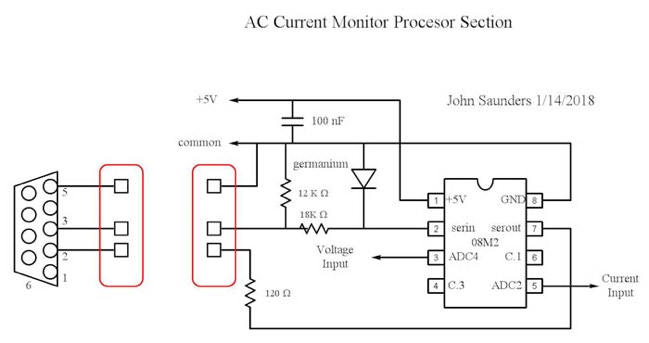

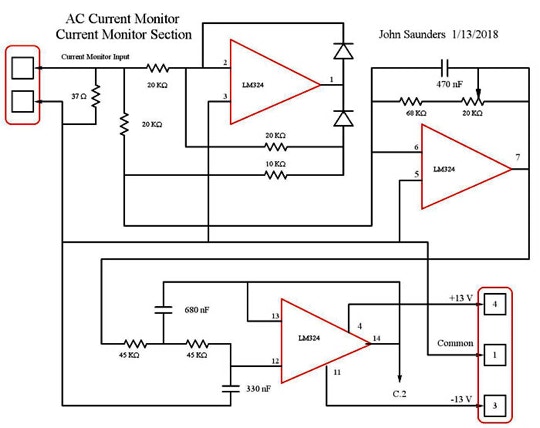

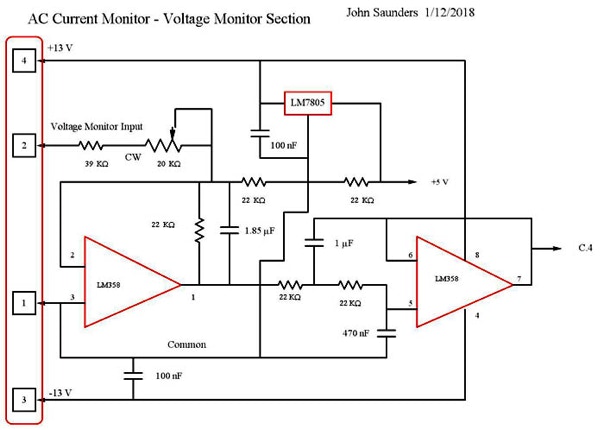

There are two enclosures. The line voltage items are in a blue double-wide standard electrical box. The low-voltage circuit is inside a black plactic box bolted to it. This box has a 9-pin D-connector which is used both for programming the micro-controller and for transmitting the measurements via the Universal Transmitter

Line Monitor Picaxe Program

Declarations and Data

#rem Line_Monitor.bas This is for the double blue outlet box

with attached black enclosure with a DB-9 S for the Universal Transmitter

It measures line voltage from 60 to 150 V with a precision of 100 mv

It measures the currenr of the load on either duplex outlet 0-5A with precision 5 MA

John Saunders 10/14/2021 Changed key Code from u to n

#endrem

#picaxe 08M2

rem inputs

symbol VoltPort = C.4

symbol AmpPort = C.2

rem Outputs dir - 'm';

symbol TxOut = C.0

rem variables

symbol scratch = b1

symbol iter = b2

symbol LoopCount = b3

symbol Char = b12

symbol Hunds = b5

symbol Units = b6

symbol Tens = b7

symbol Thous = b8

symbol Chcksum = b10

symbol ChckHex = b11

symbol AmpDiff = w10

symbol OldAmps = w11

symbol DecData = w12

symbol Amps = w13

rem constants

symbol VoltOffset = 494

symbol AmpCorr = 20

symbol AmpDelta = 100

Init and Main

init:

LET LoopCount = 0

LET OldAmps = 0

SETFREQ m4

main:

READADC10 VoltPort,DecData

LET DecData = DecData + VoltOffset

'SERTXD (#DecData,"V,")

LET bptr = 28

GOSUB StoreDec

LET DecData = 0

FOR Iter = 0 TO 4

READADC10 AmpPort,Amps

LET DecData = DecData + Amps

PAUSE 9

LET DecData = DecData - AmpCorr

'SERTXD (#DecData,"A",13,10)

LET bptr = 28 + 5

GOSUB StoreDec

IF DecData > OldAmps THEN

LET AmpDiff = DecData - OldAmps

ELSE

LET AmpDiff = OldAmps - DecData

ENDIF

IF AmpDiff > AmpDelta THEN

GOSUB Transmit

ENDIF

LET OldAmps = DecData

INC LoopCount

IF LoopCount > 180 THEN

GOSUB Transmit

ENDIF

IF OldAmps = 0 THEN

PAUSE 1000

ELSE

PAUSE 300

ENDIF

GOTO main

Sub-programs

StoreDec:

BINTOASCII DecData,Scratch,Thous,Hunds,Tens,Units

POKE bptr,Thous

INC bptr

POKE bptr,Hunds

INC bptr

POKE bptr,Tens

INC bptr

POKE bptr,Units

INC bptr

POKE bptr,","

RETURN

Transmit:

LET ChckSum = 0

FOR bptr = 28 TO 36

PEEK bptr,char

LET ChckSum = ChckSum + char

LET ChckHex = ChckSum / 16

IF ChckHex < 10 THEN

LET ChckHex = ChckHex + "0"

ELSE

LET ChckHex = ChckHex + "7"

ENDIF

LET Tens = ChckHex

LET ChckHex = ChckSum & $F

IF ChckHex < 10 THEN

LET ChckHex = ChckHex + "0"

ELSE

LET ChckHex = ChckHex + "7"

ENDIF

LET bptr = 28

HIGH TxOut

PAUSE 40

LOW TxOut

PAUSE 20

rem 'E is length code = 60 + length between commas

SEROUT TxOut,N2400_4,("14L1776v,E,",@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptr,Tens,ChckHex,13,10)

LET LoopCount = 0

RETURN
