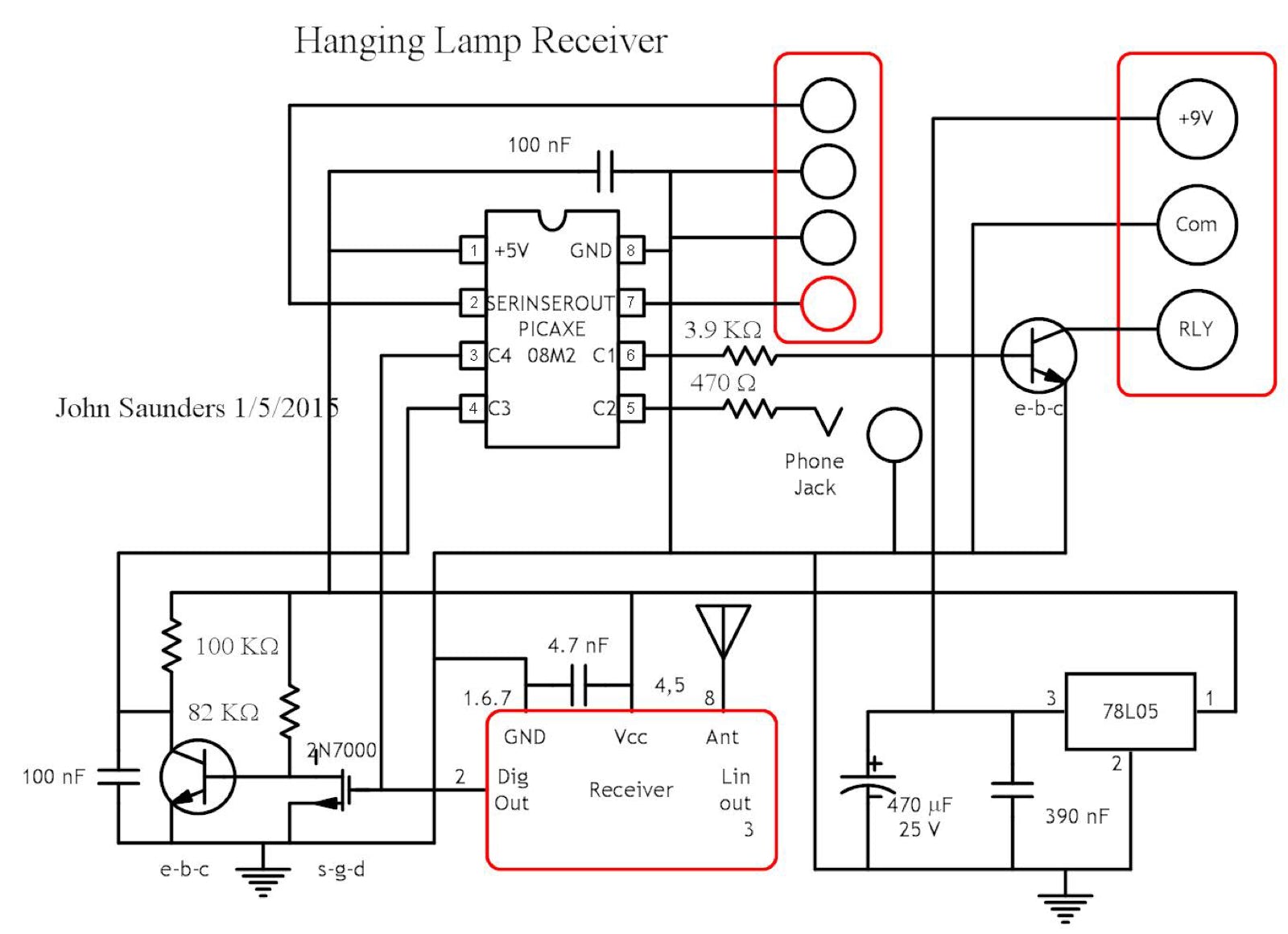

A receiver built into a box with an outlet
This receiver was originally used in conjunction with a box which provided a constant current to illuminate ornaments. The box was controlled by a cable plugged into phone jack. This setup became obsolete; see the Display Cabinet Receiver.

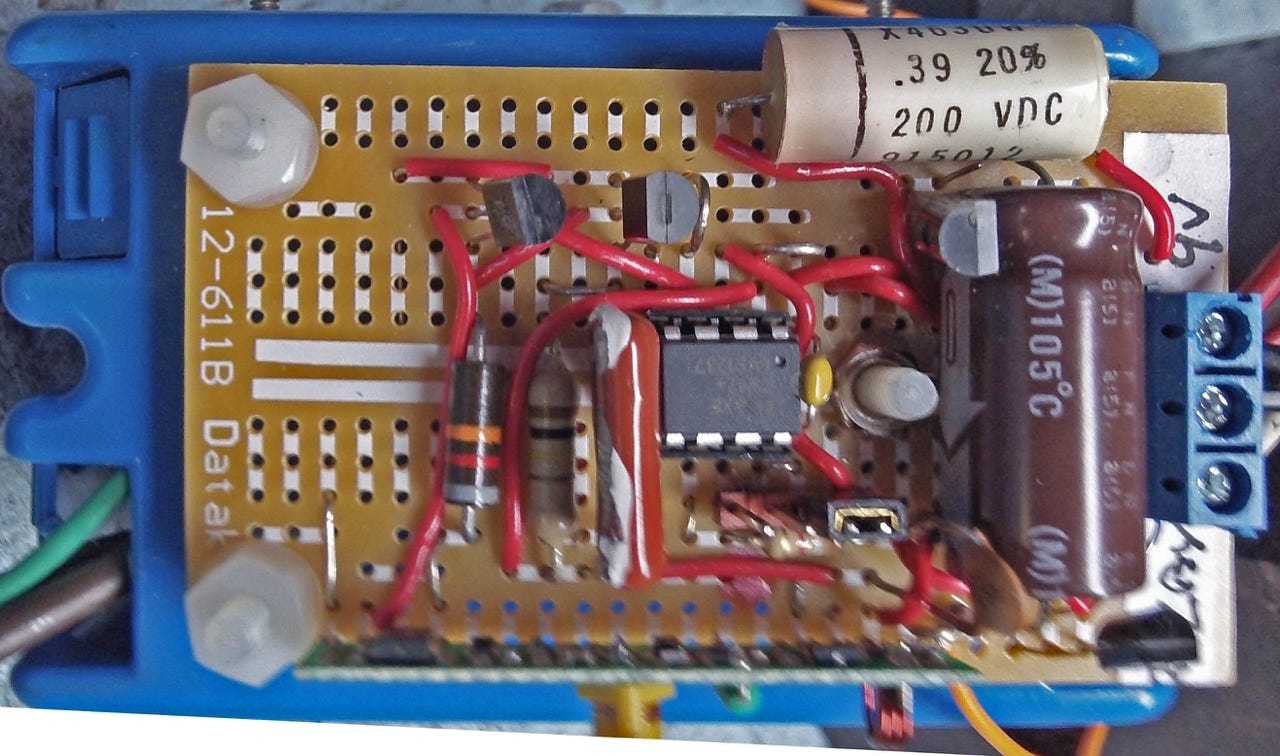

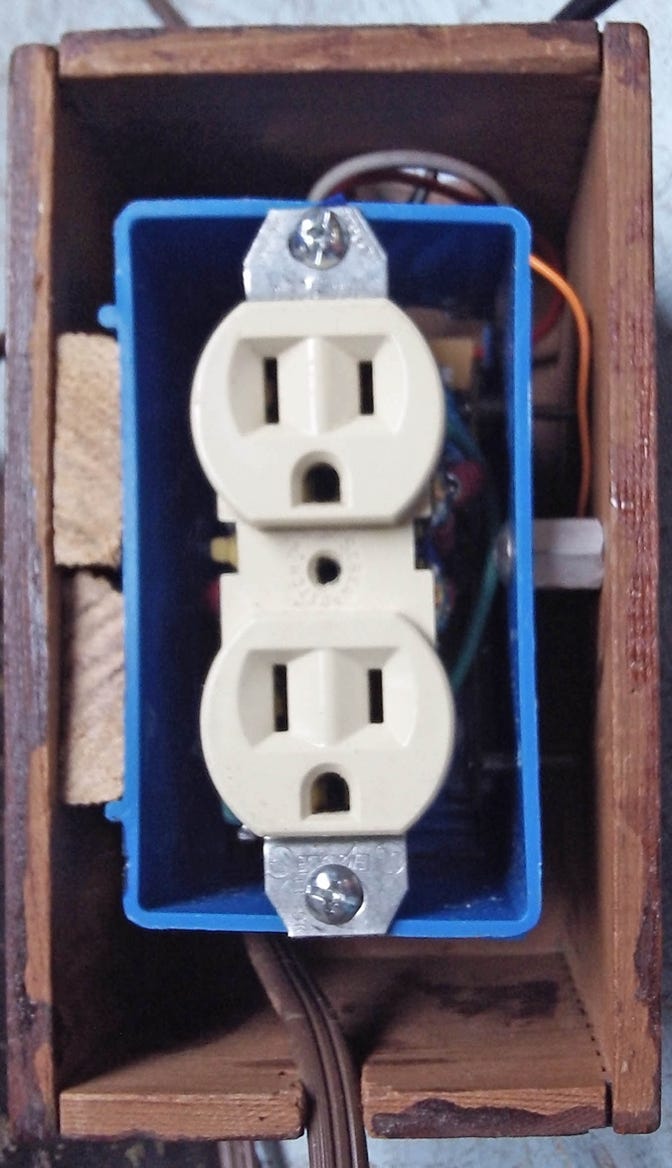

The second output is a relay driver which controls one side of the duplex outlet. The other side is not switched. The power supply is plugged into it.
Originally the hanging lamp was plugged into the controlled outlet, but this lamp is now controlled by the Display Cabinet Receiver, so this device is shelved.
Picaxe Program
#rem Hanging lamp.bas This is the single outlet in the wood box
Use 9200N power supply
Use with 7-position rotary transmitter CCW position
John Saunders 1/5/2015 Added phone jack output for LED current source ; phone jack 5V
#endrem
#picaxe 08M2
'Output Ports
symbol Relay = C.1
symbol Eggs = C.2
'Input ports
symbol Rcvr_In = C.4
'Variables
symbol Lamp_on = bit0
symbol Eggs_on = bit1
symbol Rcvr_Val = b1
init:
SETFREQ m8
LOW Relay
LET Lamp_on = 0
SETINT %00001000,%00001000 'Interrupt when C,3 high
main:
IF Lamp_On = 1 THEN
HIGH Relay
ELSE
LOW Relay
ENDIF
IF Eggs_On = 1 THEN
HIGH Eggs
ELSE
LOW Eggs
ENDIF
GOTO main
Interrupt:
PAUSE 10 'There is a 10 ms gap before the code to allow the serin to execute
LET Rcvr_Val = "Z"
SERIN [100,NoAscii],Rcvr_In,N2400_8,("14L1776"),Rcvr_Val
IF Rcvr_Val = "C" THEN
LET Lamp_on = 0
ENDIF
IF Rcvr_Val = "I" THEN
LET Lamp_on = 1
ENDIF
IF Rcvr_Val = "9" THEN
LET Eggs_on = 0
ENDIF
IF Rcvr_Val = "d" THEN
LET Eggs_on = 1
ENDIF
PAUSE 300
NoAscii:
SETINT %00001000,%00001000 'Interrupt when C,3 high
RETURN
