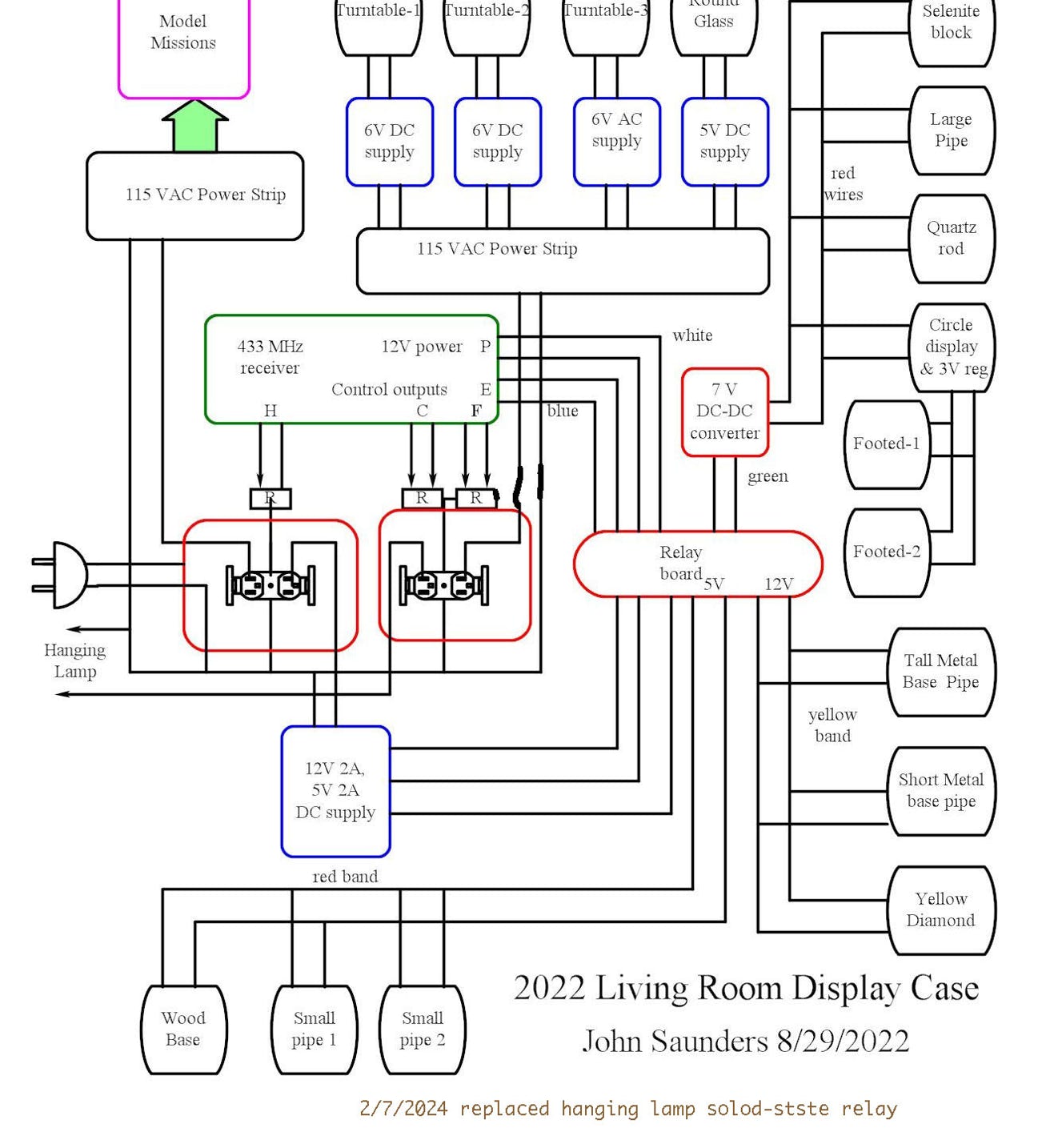

Den System Diagram

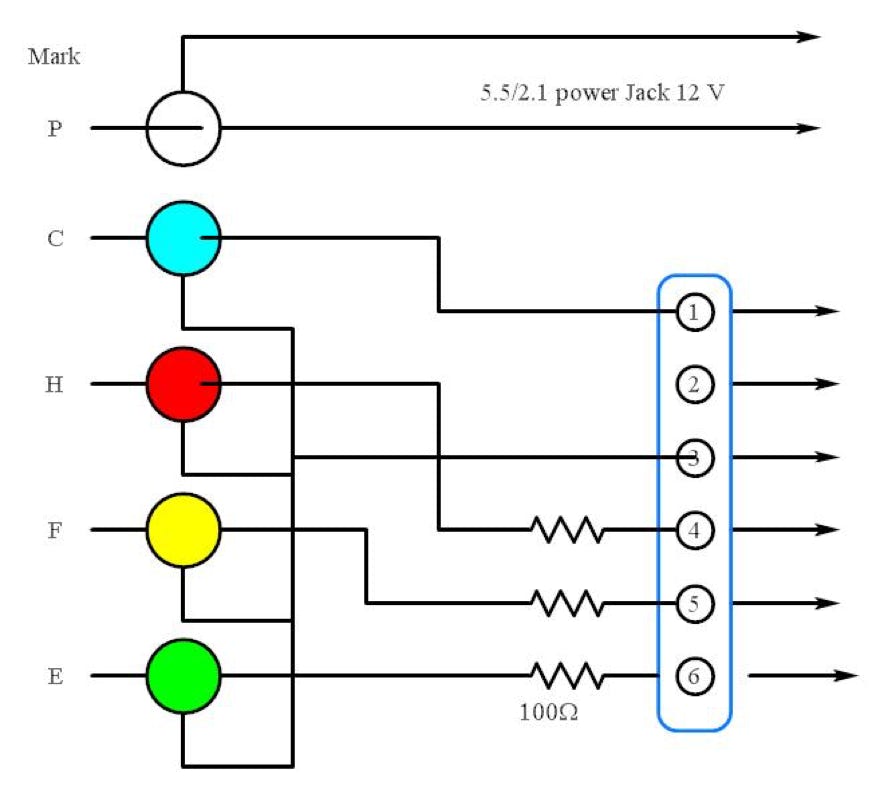

Receiver Harness

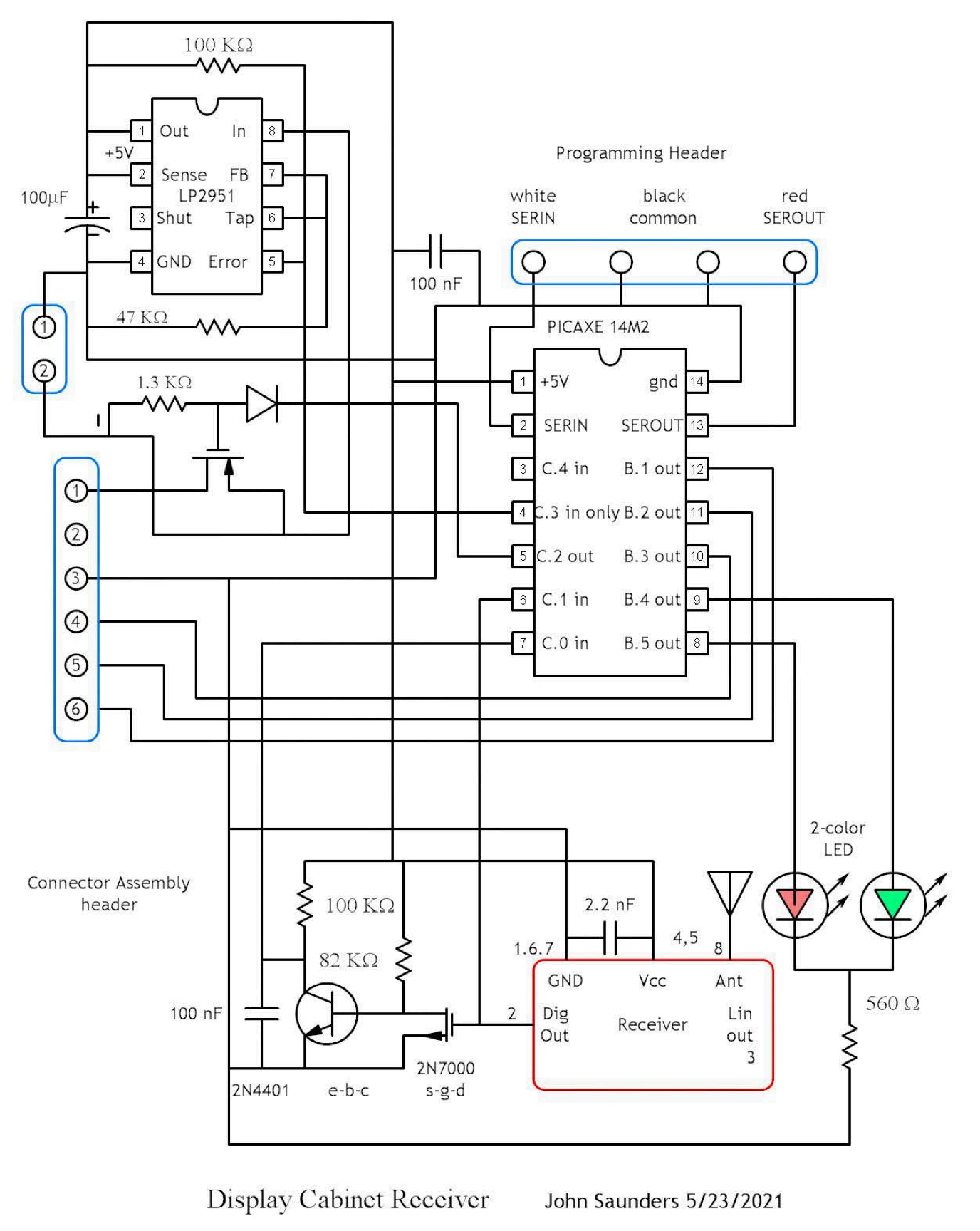

330 MHz Receiver
This receiver controls a variety of ornaments on a display case plus a lamp hanging from the ceiling.

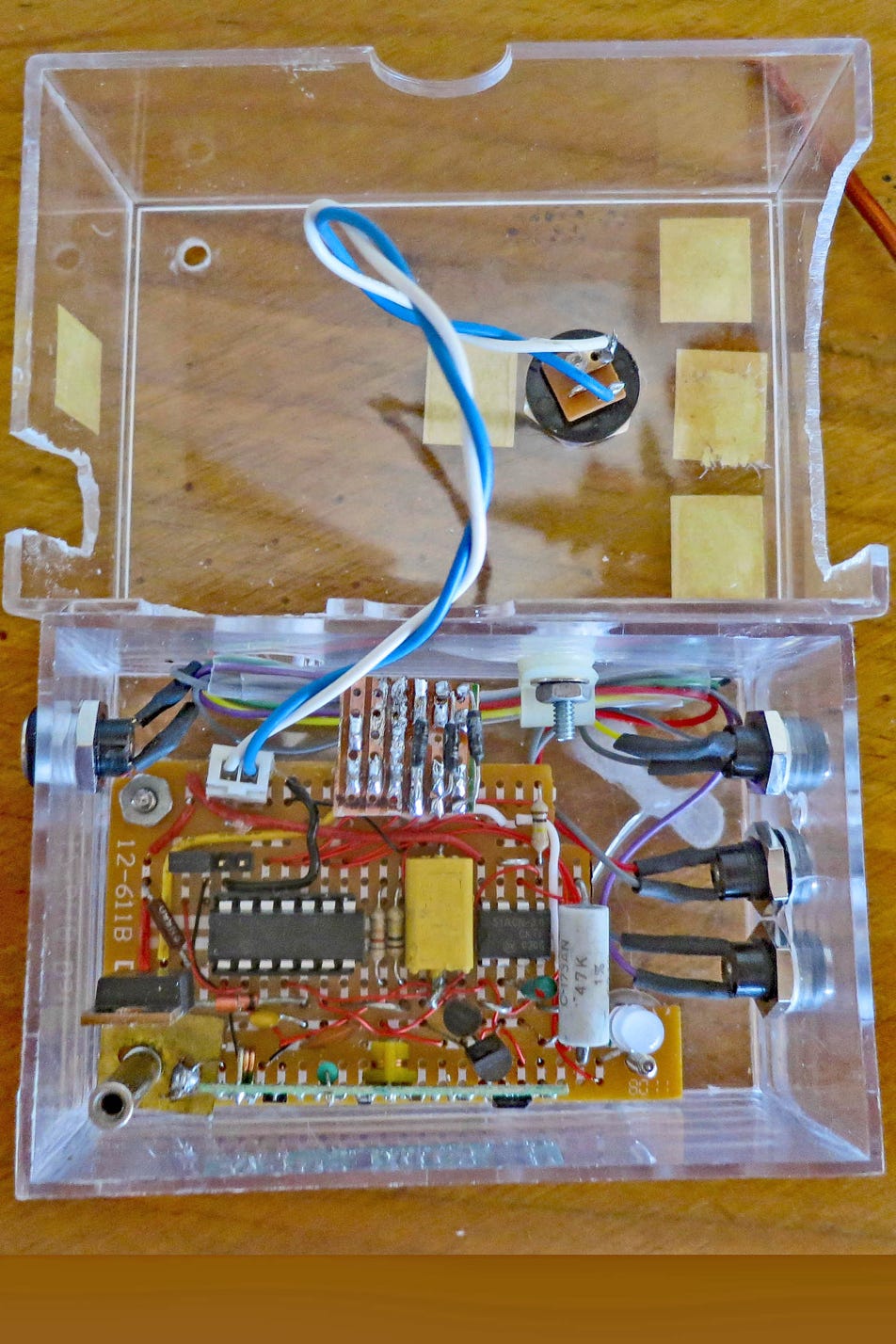

It has 4 outputs. Three are 5V to solid-state relays, and one is 12V for the hanging lamp because its solid-state relay failed and was replaced by a mechanical one. The receiver is housed in a trough on the back of the display cabinet, together with a distribution panel for the non-powered ornaments and two boxes with split duplex outlets and relays. The distribution panel also includes a mechanical relay and a driver.
#rem LR_Receiver.bas This is the receiver in the clear case in the display cabinet.
It has four Coax 5.5x2.1 jack outputs
Use the 12 V power supply
10/30/2016 New off codes 5/24/2021 Added Eggs channel
8/30/2022 Restored normal polarity for C mark and use hanging lamp codes "I", "C"
#endrem
#picaxe 14M2
'Output Ports
symbol Eggs_Jack = B.1 'Most ornaments E mark
symbol Flashing_Jack = B.2 'Individula turntables F mark
symbol Houses_Jack = B.3 'Mission Models H mark
symbol Circle_Jack = C.2 'Hanging lamp C mark
symbol Green_LED = B.4
symbol Red_LED = B.5
'Input ports
symbol Rcvr_In = C.1
symbol Reg_Error = pinC.3
'Variables
symbol Lamp_on = bit0
symbol Rcvr_Val = b1
symbol Sec_Count = w5
'Constants
symbol Time_out = 7200
init:
SETFREQ m8
LOW Green_LED
LOW Red_LED
LOW Eggs_Jack
LOW Flashing_Jack
LOW Houses_Jack
LOW Circle_Jack
LET sec_count = 0
LET lamp_on = 0
SETINT %00000001,%00000001 'Interrupt when C,0 high
main:
Pause 1960
IF Reg_Error = 0 THEN 'Goes low if +5V droops 75 mv
LOW Houses_Jack
LOW Eggs_Jack
LOW Flashing_Jack
HIGH Circle_Jack
HIGH Red_LED
LET Lamp_on = 0
LET Sec_Count = 0
ENDIF
IF Lamp_On = 1 THEN
INC Sec_Count
IF Sec_Count = Time_out THEN
LOW Houses_Jack
LOW Eggs_Jack
LOW Flashing_Jack
HIGH Circle_Jack
HIGH Red_LED
LET Lamp_on = 0
LET Sec_Count = 0
ENDIF
ENDIF
GOTO main
Interrupt:
'DO WHILE Rcvr_Int = 1 'Interrupt is triggered by a 20 ms burst which exceeds intergator threshold
'LOOP
PAUSE 10 'There is a 10 ms gap before the code to allow the serin to execute
LET Rcvr_Val = "Z"
SERIN [100,NoAscii],Rcvr_In,N2400_8,("14L1776"),Rcvr_Val
SETFREQ m8
IF Rcvr_Val = "Y" THEN 'Individual turntables on
HIGH Green_LED
HIGH Flashing_Jack
LET Lamp_on = 1
ELSEIF Rcvr_Val = "M" THEN 'Missions on
HIGH Green_LED
HIGH Houses_Jack
LET Lamp_on = 1
ELSEIF Rcvr_Val = "I" THEN 'Hanging Lamp on
HIGH Green_LED
HIGH Circle_Jack
LET Lamp_on = 1
ELSEIF Rcvr_Val = "d" THEN 'Ornaments on
HIGH Green_LED
HIGH Eggs_Jack
LET Lamp_on = 1
ELSEIF Rcvr_Val = "W" THEN 'Individual turntables off
HIGH Green_LED
LOW Flashing_Jack
LET Lamp_on = 0
LET Sec_Count = 0
ELSEIF Rcvr_Val = "g" THEN 'Missions off
HIGH Green_LED
LOW Houses_Jack
LET Lamp_on = 0
LET Sec_Count = 0
ELSEIF Rcvr_Val = "C" THEN 'Hanging Lamp off
HIGH Green_LED
LOW Circle_Jack
LET Lamp_on = 0
LET Sec_Count = 0
ELSEIF Rcvr_Val = "9" THEN 'Ornaments off
HIGH Green_LED
LOW Eggs_Jack
LET Lamp_on = 0
LET Sec_Count = 0
ELSE
HIGH Red_LED
'SERTXD ("Received = ",Rcvr_in,13,10)
ENDIF
PAUSE 300
GOTO End_Interrupt
NoAscii:
HIGH Red_LED
'SERTXD ("Incorrect code",13,10)
PAUSE 300
End_Interrupt:
LOW Red_LED
LOW Green_LED
SETINT %00000001,%00000001 'Interrupt when C.0 high
RETURN
