This is a portable receiver which responds to signals from the gate switch by making tunes and illuminating a 3-color LED.

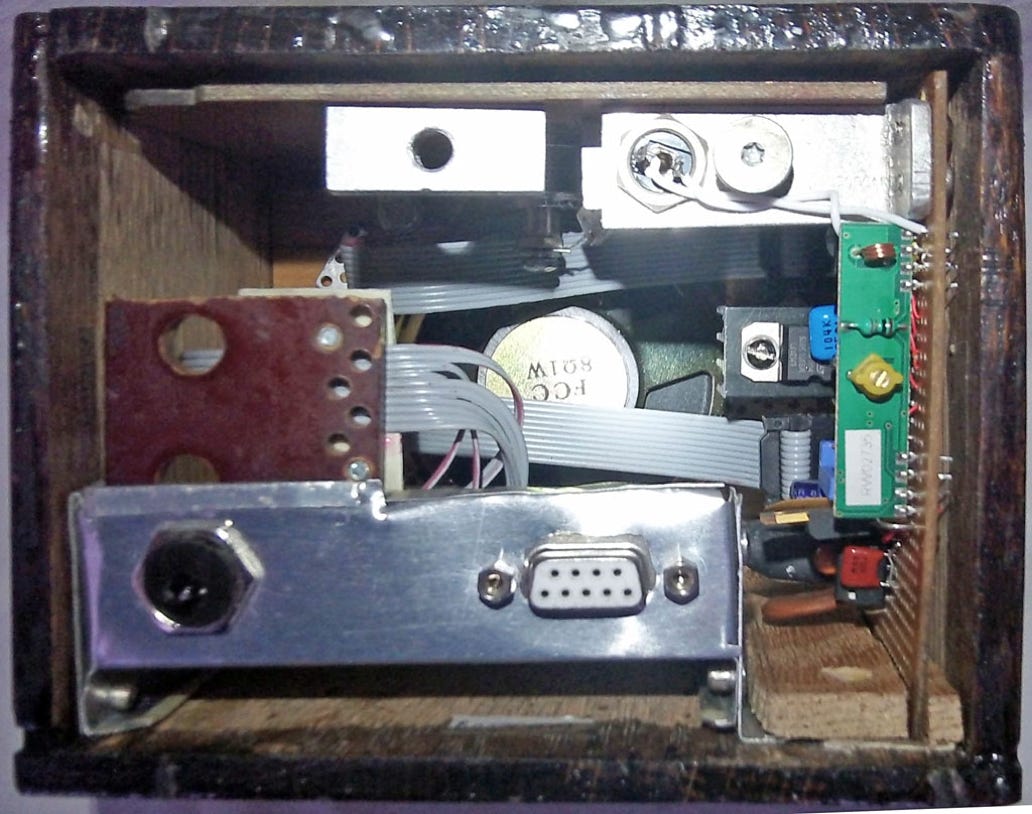

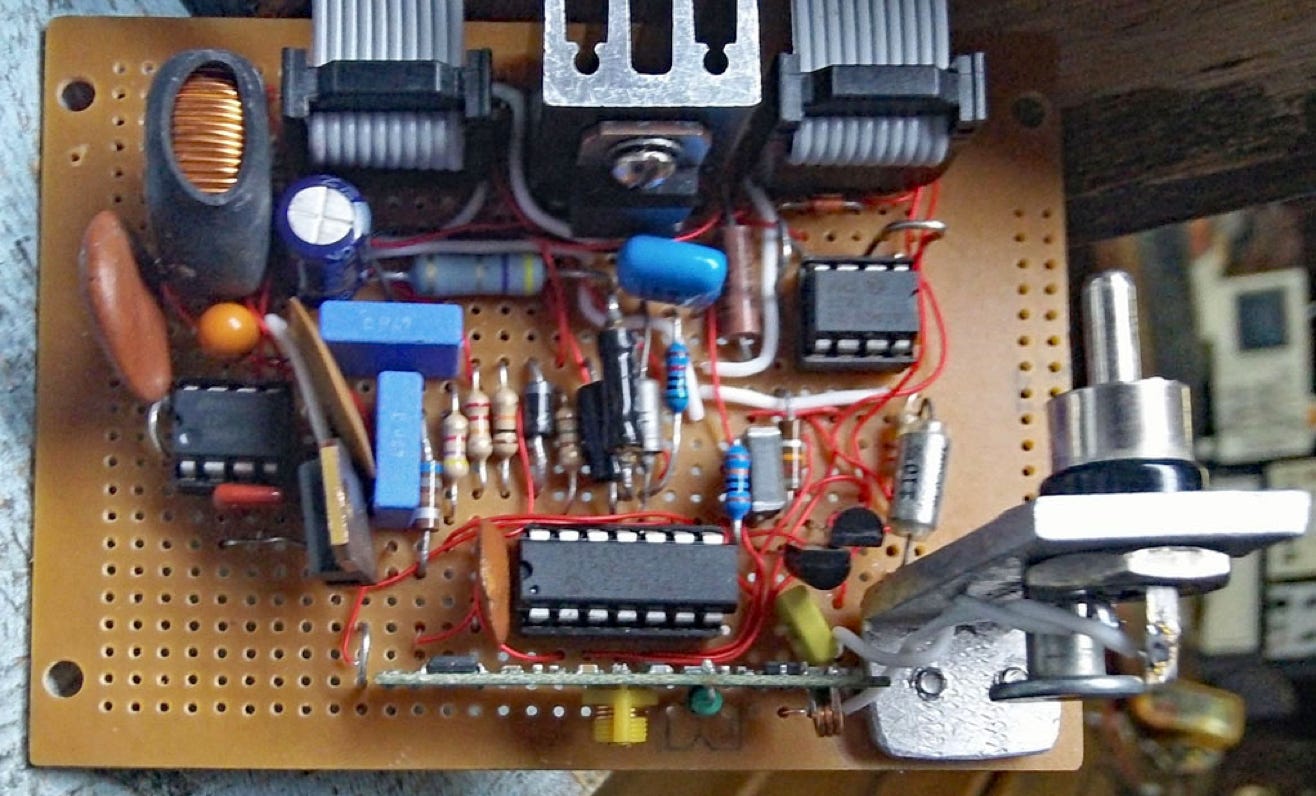

The speaker, the LED, and the antenna are fastened to the box. A metal chassis holds the 5 NiMh AA-size batteries and the charging and programing connectors. A flange at is front holds it down, and another on the side helps. The electronics board fits into a slot and has a bracket at the top for the antenna connector. There is a wooden back.

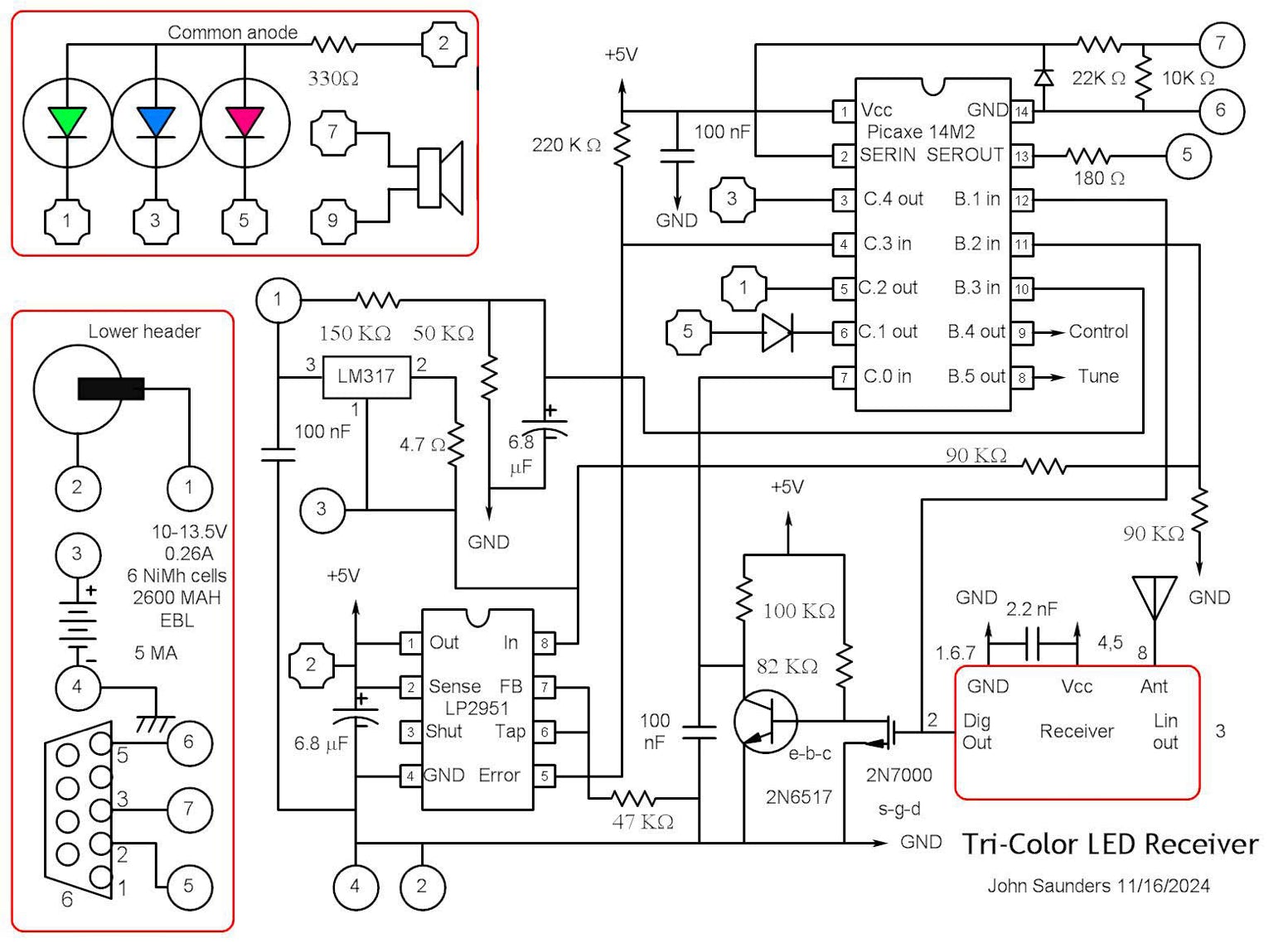

The LM317 provides a constant 250 MA charging current, The battery voltage is measured at pin B.2 while pin B.3 measures the charging voltage,
The LP 2951 is a low-dropout regulator to provide 5V for the microcontroller and the receiver.

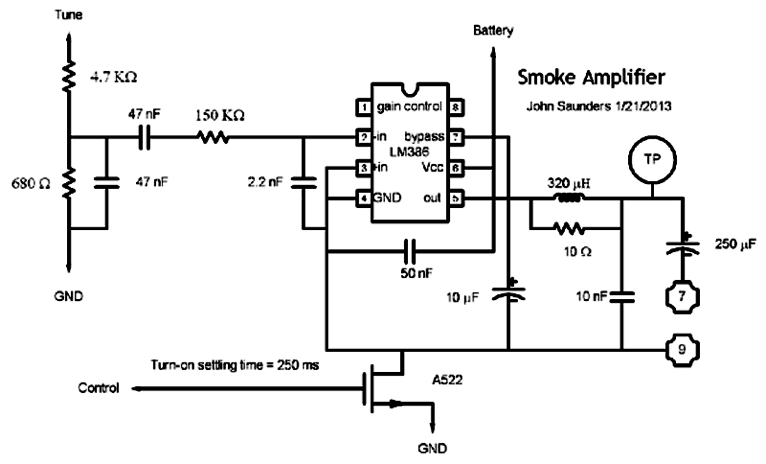

The LM385 audio amplifier is only powered briefly while making sounds,
#rem Alarm_Receiver2024.BAS This is for the wood cube with the speaker
The Receiver gets a 433 Mhz signal from the gate transmitter or the 6-button Transmitter
The main loop of 1/10 sec times LED on duration, blinking and flashing
The command codes accepted are in Rcvr_Val and have correspondinf OpCodes as inteces to the parameter tables in EEPROM:
e:0 Flashes blue LED battery volts in morse code
D:1 Flashes green LED battery tenth volts in morse code
A;2 Lights red LED
H:3 Turns off the LEDs
Q:4 Lights red LED and plays Gate Open tun
B:5 Lights red LED and plays Gate Closed tune
h:6 Flashes red LED and plays Siren tune
John Saunders 11/13/2024
#endrem
#PICAXE 14M2
'Input Ports
symbol Rcvr_In = B.1 'Idle low
symbol Batt_Mon = B.2 '1/2 of the battery voltage
symbol Chg_Mon = B.3 '1/4 of the charging voltage
symbol Reg_Err = pinC.3 'Goes low if the 5V regulator drops below 5V
'Output Ports
symbol Outport = B.0
symbol Aud_Cont = B.4
symbol Aud_Tune = B.5
symbol Red_LED = C.1
symbol Green_LED = C.2
symbol Blue_LED = C.4
'Variables
'Interrupt variables
symbol Temp = b1
symbol Rcvr_Val = b2
symbol LenCode = b3
'Specific variables
symbol MorseStep = b10
symbol Loop_Cnt = b11 'Count of main loop of 1/10 sec = 7
symbol DataAddr = b12
symbol OpCode = b14 'Index into parameter tables
symbol Steplen = b15
symbol DigitVal = b16
symbol DecVal = b17
symbol Batt_Mv = w10 'ADC output
symbol PauseVal = w11
'General variables
symbol Scratch = b4
'Constants
symbol MorseInterval = 50
symbol MaxOpCode = 7
rem EEPROM tables:
rem morse code for 0-9
DATA 0,(60,60,60,60,60)
DATA 5,(20,60,60,60,60)
DATA 10,(20,20,60,60,60)
DATA 15,(20,20,20,60,60)
DATA 20,(20,20,20,20,60)
DATA 25,(20,20,20,20,20)
DATA 30,(60,20,20,20,20)
DATA 35,(60,60,20,20,20)
DATA 40,(60,60,60,20,20)
DATA 45,(60,60,60,60,20)
Init:
SETFREQ m8
LOW Aud_Cont
LOW Aud_Tune
LOW Outport
LET OpCode = 2
LET Loop_Cnt = 3 'Count of main loop of 1/10 sec = 7
SETINT %00000001,%00000001 'Interrupt when Rcvr_Int high
Main:
PAUSE 1
LET Loop_Cnt = 3 'Count of main loop of 1/10 sec = 7
IF OpCode < 2 THEN
FVRSETUP FVR4096 '1000 count at battery 8V
ADCCONFIG $03 'Use fixed internal reference
READADC10 Batt_Mon,Batt_mv 'Battery tap 1/2, scale is 8 mv/count
LET DigitVal = Batt_mv / 125SERTXD ("Op Code = ",#OpCode,13,10)
LET DecVal = Batt_mv // 125
LET DecVal = 2 * DecVal
LET DecVal = DecVal/25
SERTXD (#Batt_mv,": ", #DigitVal,".",#DecVal,13,10)
SETINT OFF
FOR MorseStep = 0 TO 4
IF OpCode = 0 THEN
LOW Blue_LED
LET DataAddr = 5 * DigitVal + MorseStep
ELSE
LET DataAddr = 5 * DecVal + MorseStep
LOW Green_LED
ENDIF
READ DataAddr,StepLen
FOR Scratch = 0 TO StepLen
PAUSE MorseInterval
NEXT
HIGH Blue_LED
HIGH Green_LED
FOR Scratch = 0 TO 50
PAUSE MorseInterval
NEXT
NEXT
LET OpCode = 2
SETINT %00000001,%00000001 'Interrupt when Rcvr_Int high
ENDIF
IF OpCode >2 AND OpCode < MaxOpCode THEN
SERTXD ("Op Code = ",#OpCode,13,10)
LOW Red_LED
HIGH Aud_Cont
PAUSE 250 'Time for the audio amp to stabilize
SETINT OFF
SELECT OpCode
CASE 3 'Short Tune
TUNE Aud_tune,5,($40,$05,$49,$05,$40,$2BC7,$45,$04,$47,$04,$64,$29,$C5,$40,$05,$49,$05,$40,$2B,$C7,$45,$04)
CASE 4 'Chime
TUNE Aud_tune,2,($04,$07,$05,$AB)
CASE 5 'Baba
TUNE Aud_tune,2,($30,$30,$37,$37,$79,$7B,$40,$79,$37,$3C,$35,$35,$34,$34,$32,$32,$30)
CASE 6 'Siren
'SETINT %00000001,%00000001
FOR Scratch = 0 TO 20
'SOUND Aud_Tune,(86,300,95,300,86,300,95,300,86,300,95,300,86,300,95,300,86,300,95,300,86,300,95,300,86,300,95,300)
SOUND Aud_Tune,(86,300,95,300)
' PAUSE 30
' IF OpCode = 2 THEN EXIT
NEXT
ELSE
LOW Aud_Cont
ENDSELECT
LET OpCode = 2
LOW Aud_Cont
SETINT %00000001,%00000001 'Interrupt when Rcvr_Int high
ENDIF
LET PauseVal = Loop_Cnt * 124
PAUSE PauseVal
HIGH Red_LED
HIGH Blue_LED
HIGH Green_LED
GOTO Main
Interrupt:
LET Rcvr_Val = "z"
LET LenCode = "x"
LET temp = 0
LET OpCode = MaxOpCode '6/24/2024
DO WHILE PinC.0 = 1
LET temp = temp + 1 'Twice as fast as INC Usual count is 15
LOOP
IF temp < 5 OR temp > 20 THEN
GOTO End_Interrupt 'Minimises the time to recover from a noise interrupt
ENDIF
SERIN [40],Rcvr_In,N2400_8,("14L1776"),Rcvr_Val,temp,LenCode,temp,temp,temp, temp
IF Rcvr_Val = "O" OR Rcvr_Val >= "n" THEN End_Interrupt
LOOKDOWN Rcvr_Val,("e","D","H","A","Q","B","h"),OpCode
End_Interrupt:
SETINT %00000001,%00000001 'Interrupt when Rcvr_Int high
RETURN
