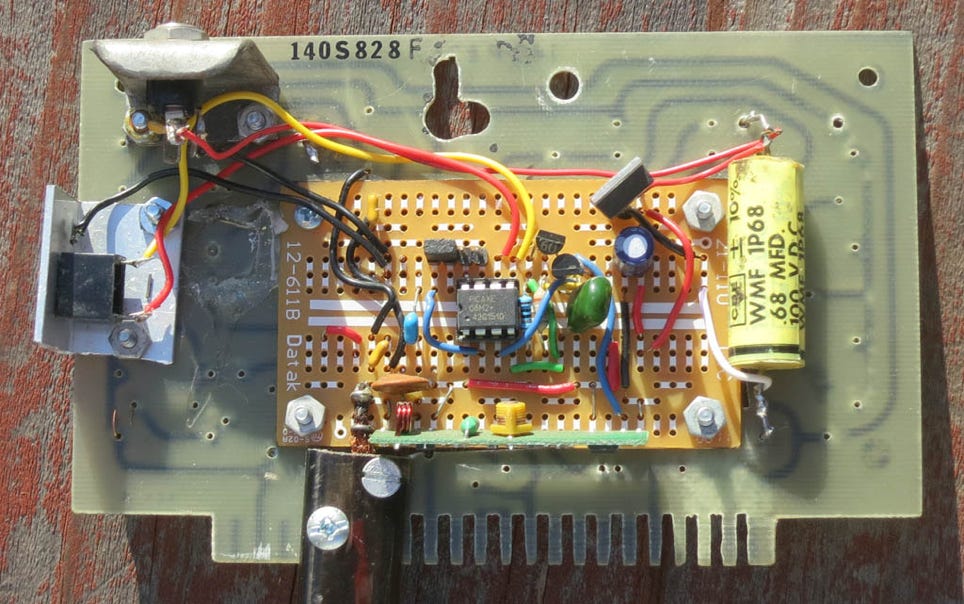

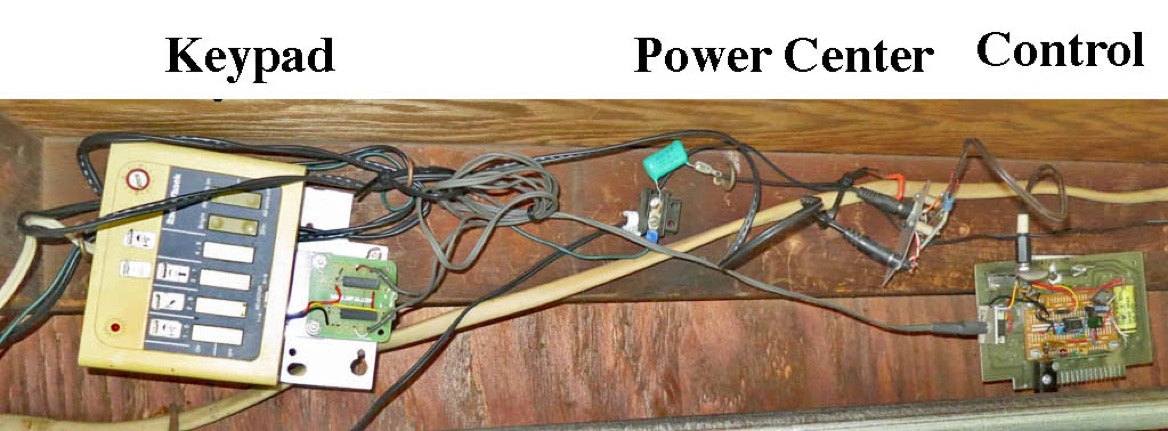

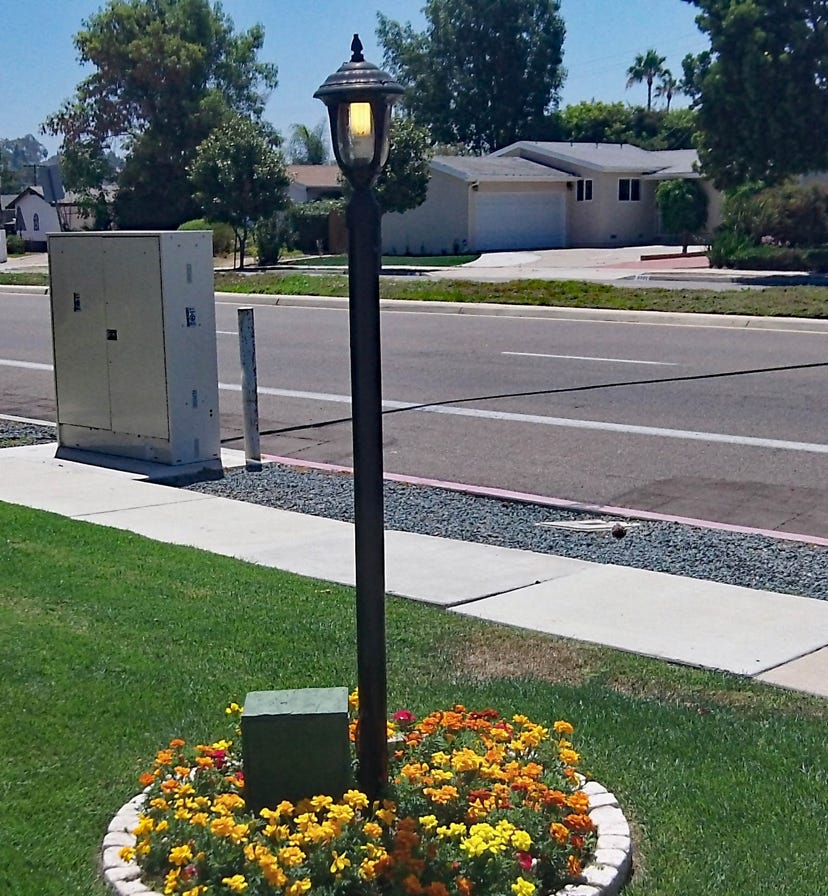

This has these two parts in the garage. On the left is an old Radio Shack X-10 controller whose buttons wore out. On the right is the controller board whose photo is on the left. Outside on a pedestal is a weatherproof NEMA enclosure containing a X-10 appliance module. The lamp tops a pole next to it.

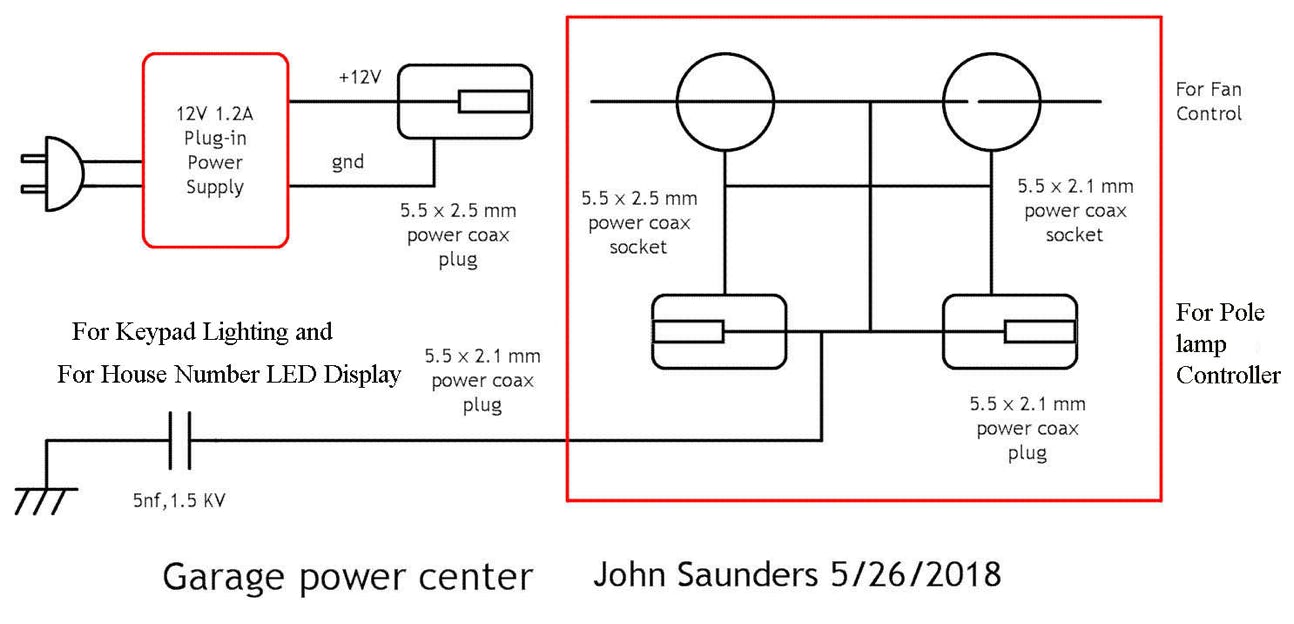

One power supply powers four devices

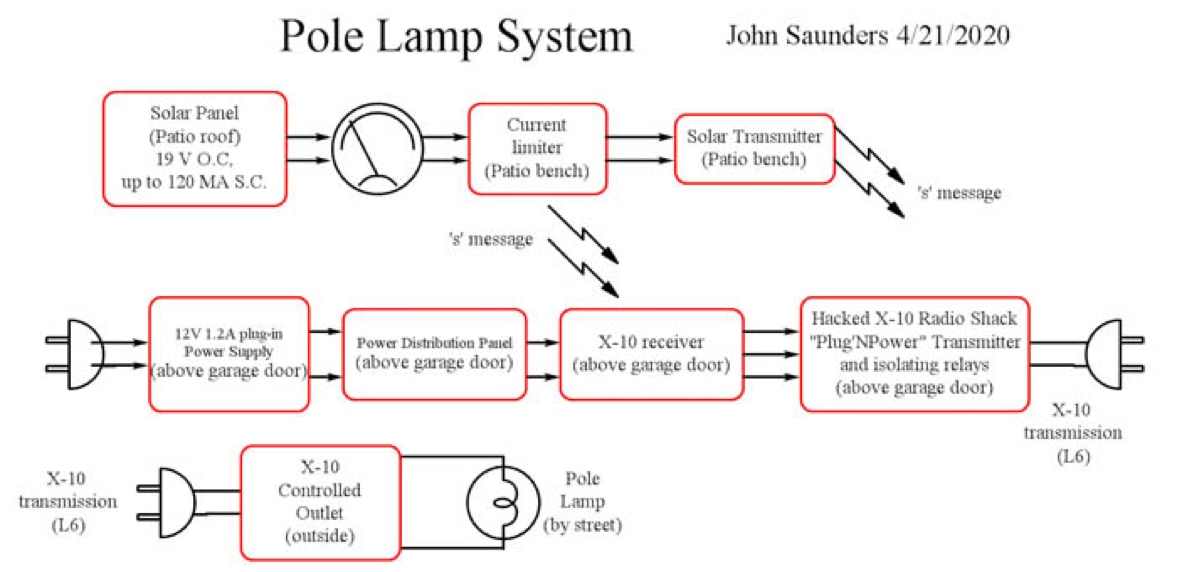

The Pole Lamp Control is actually a system of multiple devices

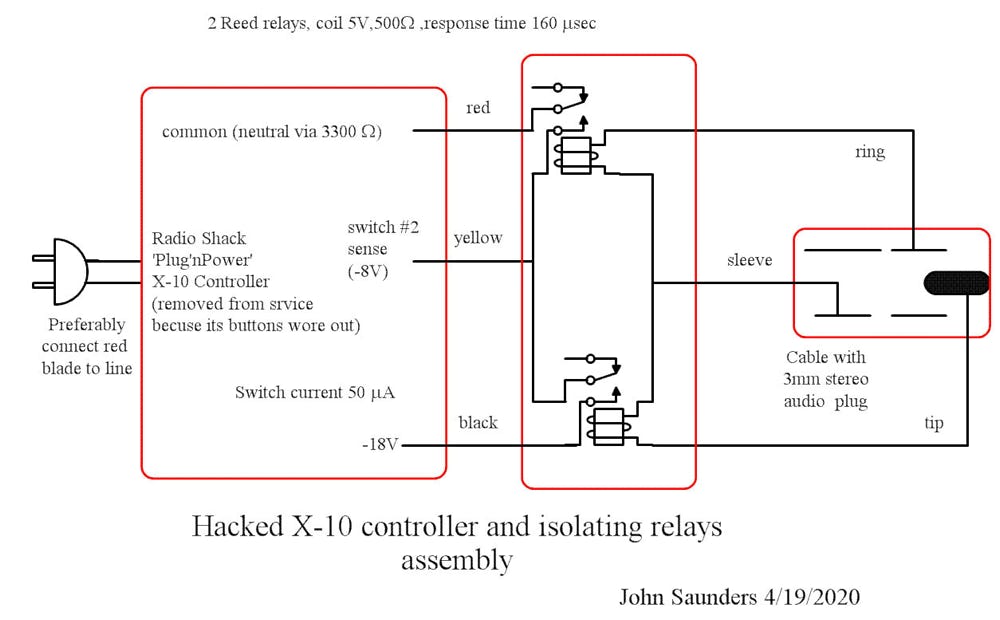

The X-10 controller keys are not isolated from line voltage so the relays are needed to provide galvanic isolation. They are reed relays, connected across two keys using fine wires,

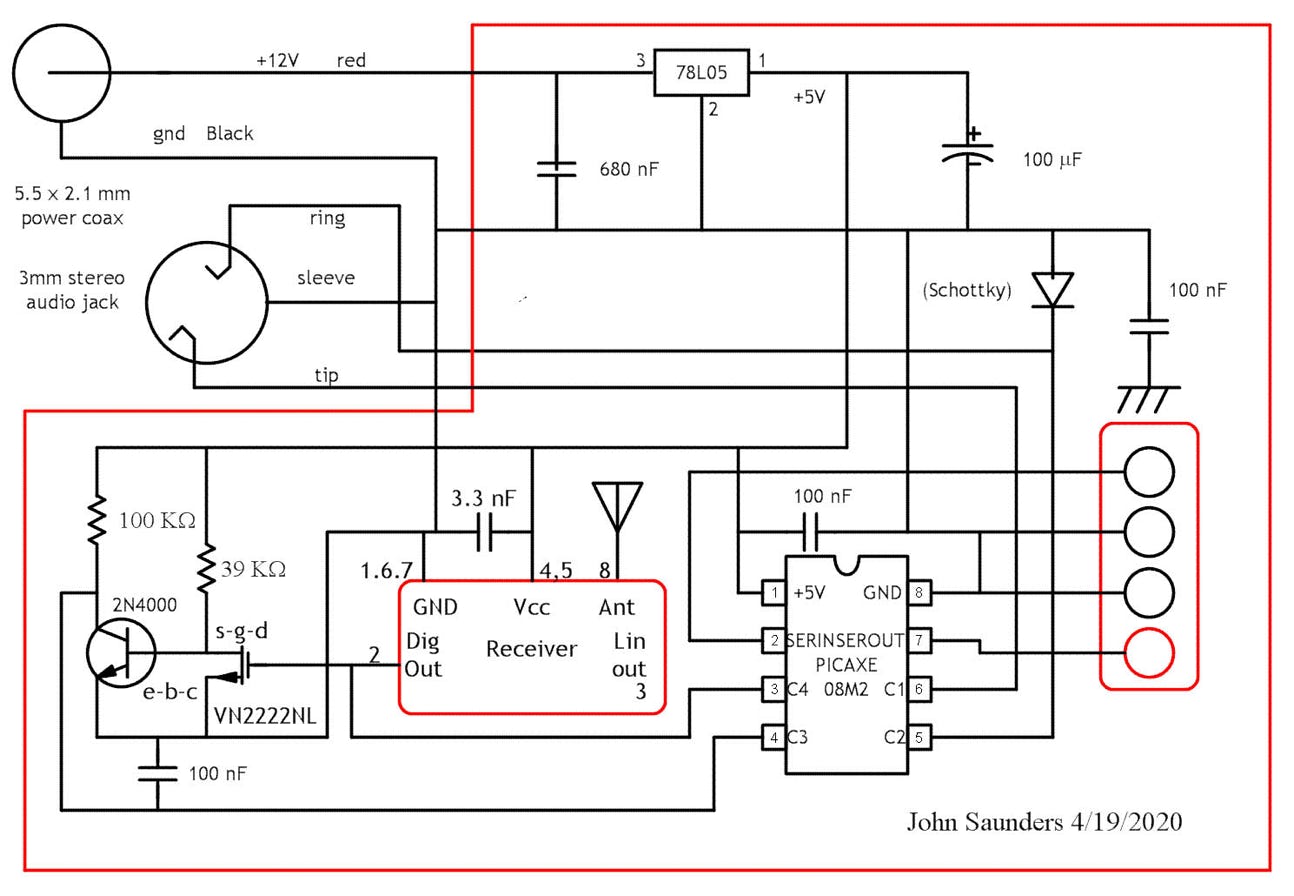

All action occurs on interrupts. Processing of the signal requires that the pre-pulse be within limits and that a key sequence is received<br>
The lamp can be turned on or off from three sources:
1. An ON or OFF control transmission. This may be manually initiated from one of the hand-held controllers, or by timers from a clock. These have key codes i and k. These act immediately.
2. A message received from the Solar Sensor of the Weather Station. This message includes a measurement of its solar array charging current. It is sent about once a minute and has the message key code "s" . After checking that its checksum matches the trailing checksum characters, the current field is retrieved from the message and converted to binary. The X-10 commands are derived indirectly from this current using an up-down counter. When a limit is reached, a command is sent to the X-10 Interface. This is repeated for subsequent messages of the same direction. This mitigates against flashes of light.
The old X-10 communications is used because the receiver can come integrated with an outlet and be in a weatherproof NEMA box.
All of the newer IOT communications devices are inside only and mostly plug into an outlet.
#rem X-10Receiver.bas 2020 version for use with Radio Shack "plug'npower" hacked controller
X10Receiver.bas controls the pole lamp by light messages from the Emvironmental Sensor
and sends on or off controls every time it gets a solar message.
The pole lamp can also be controlled manually from the 3-button transmitter.
John Saunders 4/19/2020 12/7/2020 Threshold from 4 to 6, add override
4/1/2021 Adaptions needed for extended length of solar message by 2 pad spaces.
#endrem
#picaxe 08M2
'Outputs
symbol ringPort = C.2
symbol tipPort = C.1
'Inputs
symbol IntPort = pinC.3
symbol MsgPort = C.4
'Variables
symbol Override = bit0
symbol Temp = b1
symbol Chcksum = b2
symbol ChckHex = b3
symbol LenCode = b4 'This is used to determine the bytes to include in the checksum
symbol Current = b5
symbol Rcvr_Val = b6 'The key code after 14L1776
symbol DuskCount = b7 'provides a gradual transition from night to day & vice-versa
symbol Indx = b0
symbol Msg_Len = b8
'
'Constants:
symbol DayLight = 8 'maximum value of DuskCount
symbol Threshold = 6 'Equal or above increments DuskCount, less decremenys
symbol PulseLength = 250 'Of the relay. note m8
init:
setfreq m8
LOW ringPort
LOW tipPort
LET DuskCount = Threshold
LET Override = 0
SETINT %00001000,%00001000 'Re-enable the receiver interrupts again
main:
PAUSE 50
goto main
interrupt:
LET Rcvr_Val = ">"
LET LenCode = "x"
LET temp = 0
DO WHILE IntPort = 1
LET temp = temp + 1 'Twice as fast as INC Usual count is 15
LOOP
IF temp < 10 THEN End_Interrupt 'Minimises the time to recover from a noise interrupt
LET bptr = 28
's message: Key Code|comma|LenCode| comma| temperature | comma | humidity | comma | solar current | comma | batt volts | comma | padding | hex checksum | CR | LF
SERIN [40],MsgPort,N2400_8,("14L1776"),Rcvr_Val,temp ,LenCode,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptr
SELECT Rcvr_Val
CASE = "i" 'Manual ON control overrides
LET DuskCount = 0
LET Override = 1
CASE "k"
LET DuskCount = DayLight
LET Override = 0
CASE "s"
IF Rcvr_Val <> "s" THEN End_Interrupt 'Else check solar message
LET bptr = 28
LET Chcksum = 0
LET Current = 0
LET Msg_Len = LenCode - 32 'Should be "M" = 77 dec
FOR Indx = 29 TO Msg_Len '45, end of first pad space
PEEK Indx, temp
LET Chcksum = Chcksum + temp
LET temp = temp - "0"
SELECT Indx
CASE 37
LET Current = 100 * temp
CASE 38
LET Current = 10 * temp + Current
CASE 39
LET Current = Current + temp
ENDSELECT
NEXT
LET ChckHex = ChckSum / 16
IF ChckHex < 10 THEN
LET ChckHex = ChckHex+ "0"
ELSE
LET ChckHex = ChckHex + "7"
ENDIF
LET bptr = Msg_Len + 2
LET temp = @bptr
INC bptr
IF ChckHex <> temp THEN End_Interrupt
LET ChckHex = ChckSum & $F
IF ChckHex < 10 THEN
LET ChckHex = ChckHex + "0"
ELSE
LET ChckHex = ChckHex + "7"
ENDIF
IF ChckHex <> @bptr THEN End_Interrupt
IF Current >= Threshold AND DuskCount < DayLight THEN
INC DuskCount
ENDIF
IF Current < Threshold AND DuskCount > 0 THEN
DEC DuskCount
ENDIF
ELSE
GOTO End_Interrupt
ENDSELECT
IF DuskCount = 0 OR Override = 1 THEN 'Turn on Pole Lamp
HIGH RingPort
PAUSE Pulselength
LOW RingPort
ENDIF
IF DuskCount = DayLight AND Override = 0 THEN 'Turn off Pole Lamp
HIGH TipPort
PAUSE Pulselength
LOW TipPort
ENDIF
'sertxd ("Override=",#Override,"Current=",#Current,",DuskCount=",#DuskCount,13,10)
End_Interrupt:
SETINT %00001000,%00001000 'Re-enable the receiver interrupts again
RETURN
