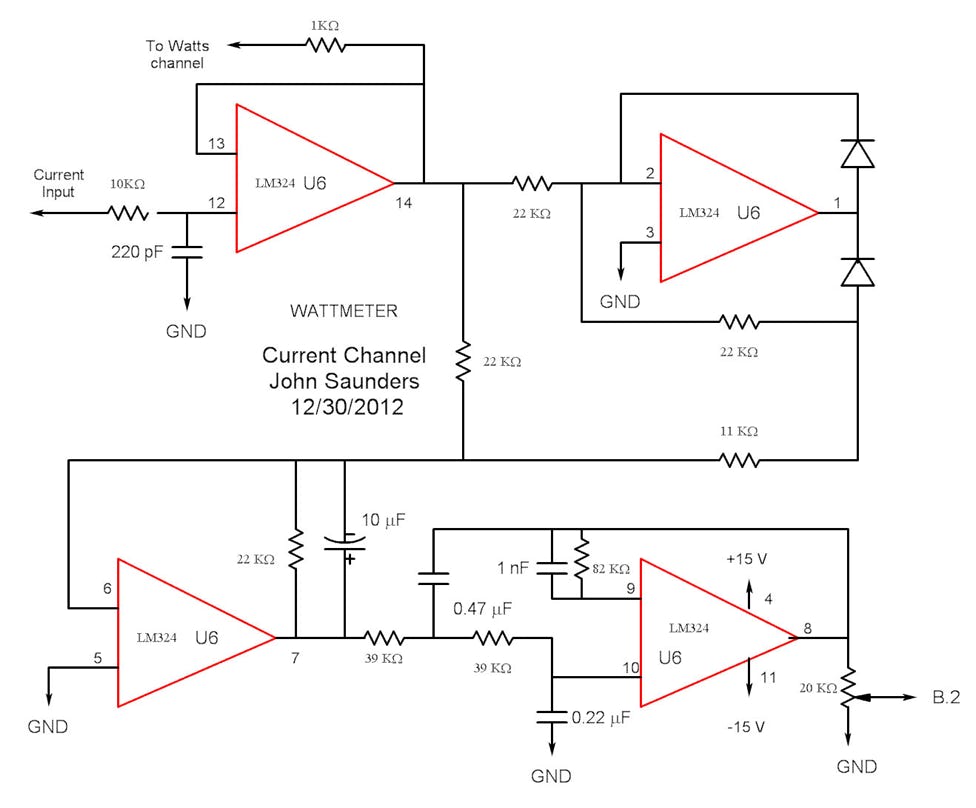

Current Channel

This measures the mean value of the current by using an active full-wave rectifier and then smoothing the resulting 120 Hz ripple with a third-order active filter, similar to that in the Watts Channel. Note that matching of the values of the 22 KΩ resistors is automatic when a SIP package is used.
