Phase Jumpers

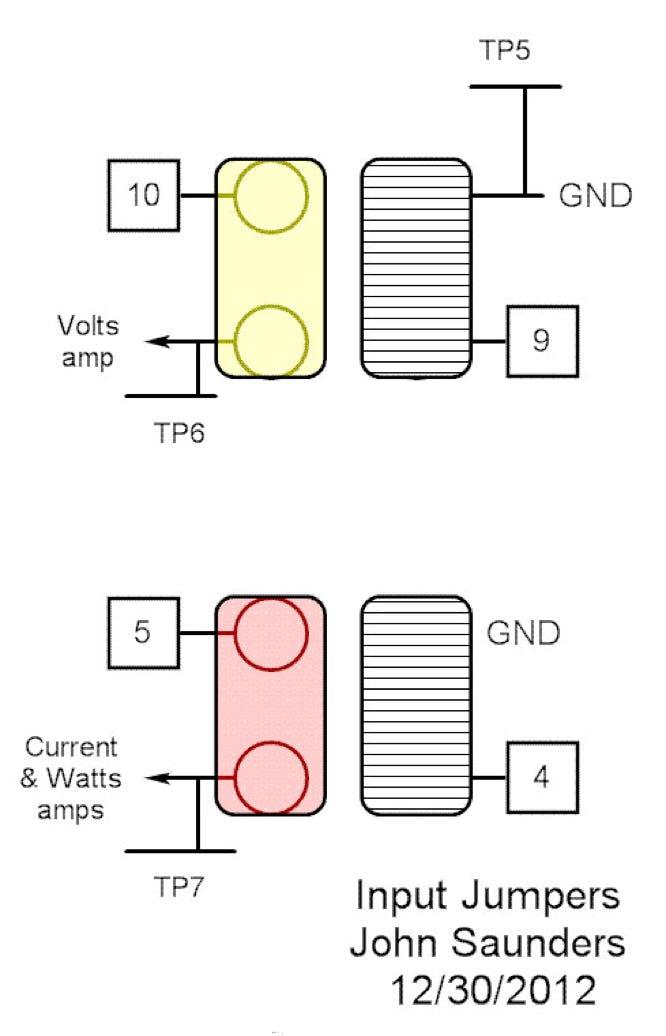

These can be rotated 90 degrees to reverse the phase of either the volts or current signals. It is also used to disconnect each input in turn when setting up the MC1494.
